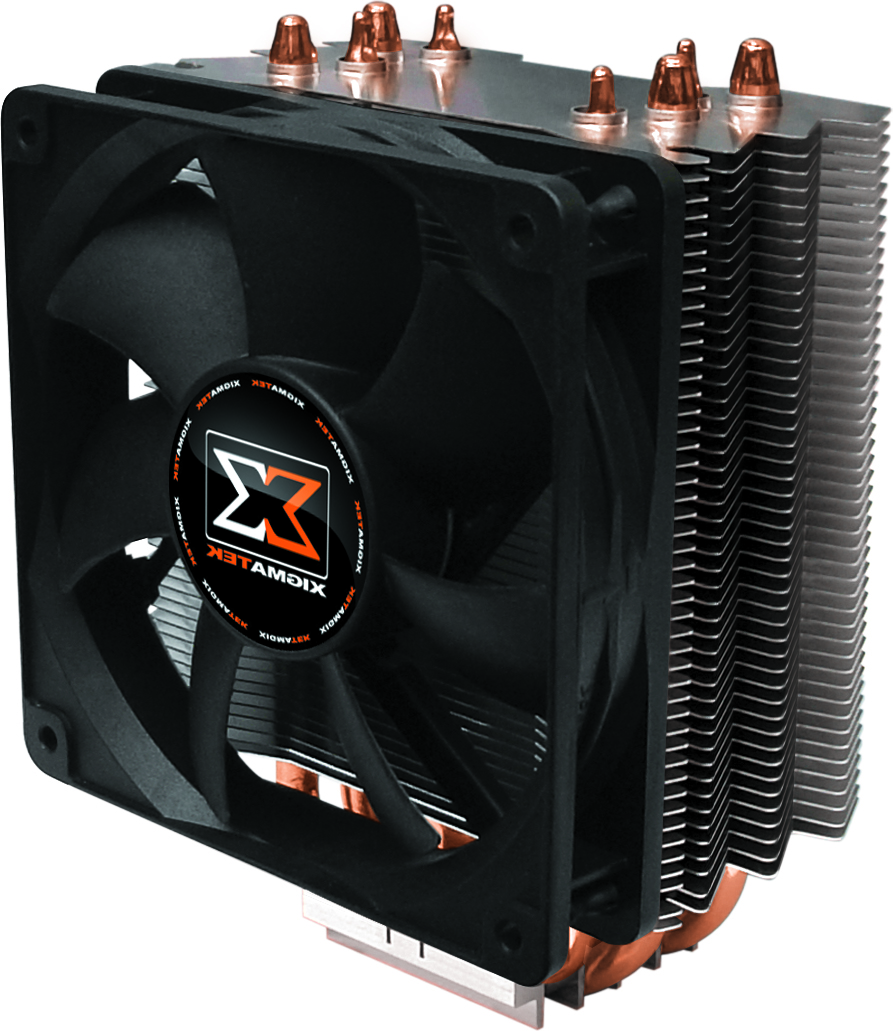

Xigmatek Cooler Heatpipe Direct Touch HDT-S1284 Enhanced Edition
[465]
№: ++465 Manufacturer: Xigmatek

€40 38

available: no
This product is not available
40.39 EUR

Specifications:

Heat-pipe Direct Touch

HDT-S1284, a new generation H.D.T. cooler, once again proves that it is possible to do concurrently both good-looking and performance. Its H.D.T. technology and 4pcs Φ8 heat-pipe makes HDT-S1284 a remarkable performing and special fan design makes it to reach a silent level. With Anti-vibration rubber, Push-pin/Clip for Intel & AMD, HDT-S1284 offers not only friendly, reliable, easy to install, but also powerful performance for users.

PRODUCT OVERVIEW

With H.D.T. technology and 4pcs Φ8mm heat-pipe, HDT-S1284 creates most efficient heat conduction and outstanding cooling performance.

HDT-S1284 combines 120mm PWM fan, 4pcs Φ8mm Heat-pipe, anti-vibration rubber and 3 in 1 application retention module.

With anti-vibration rubber and Push-pin/Clip for Intel & AMD application design, HDT-S1284 provides users not only silent level but also easy and quick installation

FEATURES

4pcs Φ8mm high performance U type heat-pipes.

H.D.T. (Heat-pipe direct touch) technology.

Special Fin Shape Design.

Anti-vibration rubber design.

Efficient PWM fan.

Light weight.

High performance & easy installation.

LGA775 push-pin / AM2 & K8 tool-less clip.

SPECIFICATION

Product Name	‧ HDT-S1284
Product Number	‧ CAC-SXHH4-U01
Dimension	‧120(W) x 60(H) x 159(D) mm
Heat Sink	‧ Material	Aluminum Alloy
Heat Sink	‧ Heat-pipe	Φ8 x 4
Fan	‧ Dimension	120(W) x 120(H) x 25(D) mm
	‧ Voltage Rating	12V
	‧ Speed	800~1500 R.P.M.
	‧ Bearing Type	Rifle Bearing
	‧ Air Flow	56.3 CFM [Max]
	‧ Air Pressure	1.57 mmH2O
	‧ Life Expectance	40,000 hrs
	‧ Noise Level	27.2 dBA
	‧ Connector	4 Pin with PWM
Weight	‧ 660g (w/fan)
Thermal Resistance	‧ 0.14 ℃/W
Application	‧ All Intel Socket 775 CPU ‧ Core 2 Extreme / Quad / Duo ‧ Pentium Extreme Edition / D ‧ Celeron D ‧ All AMD Socket AM2 / 754 / 939 / 940 CPU ‧ Athlon 64 / FX / X2 / Opteron / Sempron
