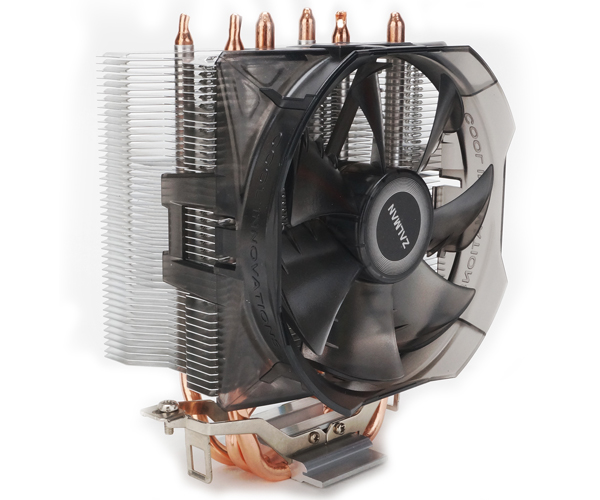

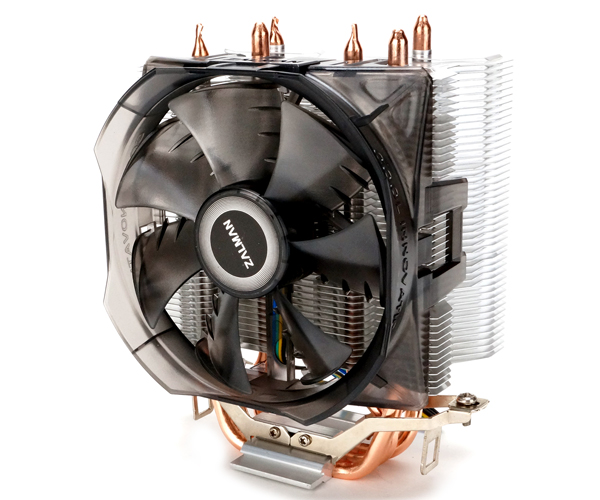

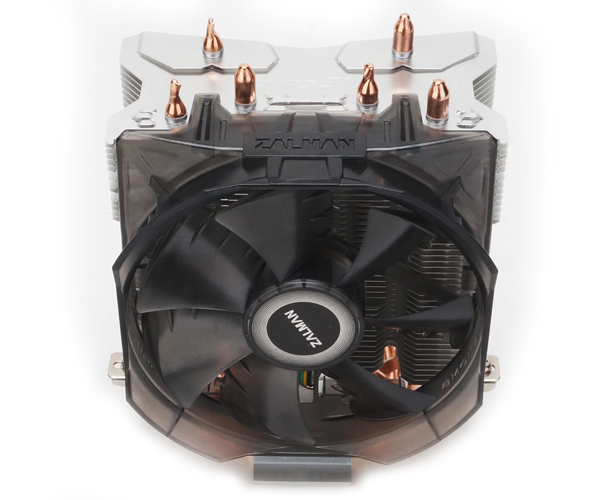

Zalman CPU Cooler CNPS8X OPTIMA 775/1150/AMD
[CNPS8X-OPTIMA]
№: ++1957   Manufacturer: Zalman

€21 85

available: no
This product is not available
21.85 EUR
share in facebook      share in facebook


Specifications:

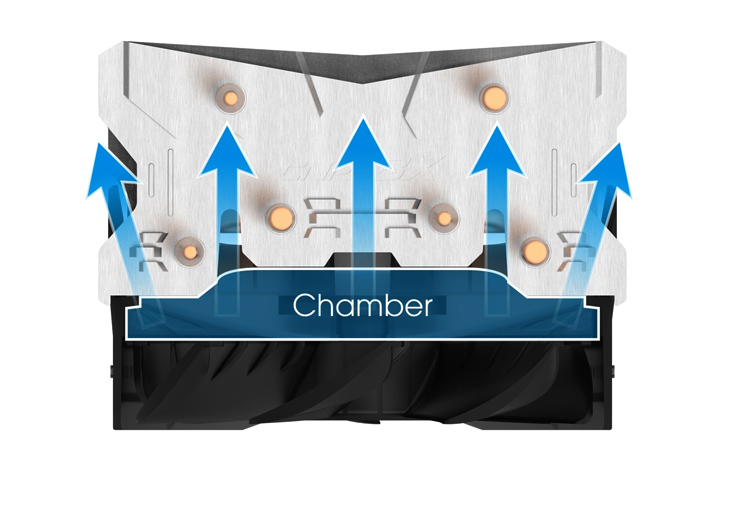

FDC (Fluid Distribution Chamber) flow structure


Flow efficiency has been maximized by increasing the air pressure via chamber formed between fan and the heat-sink and distributing it equally throughout the entire heat sink.

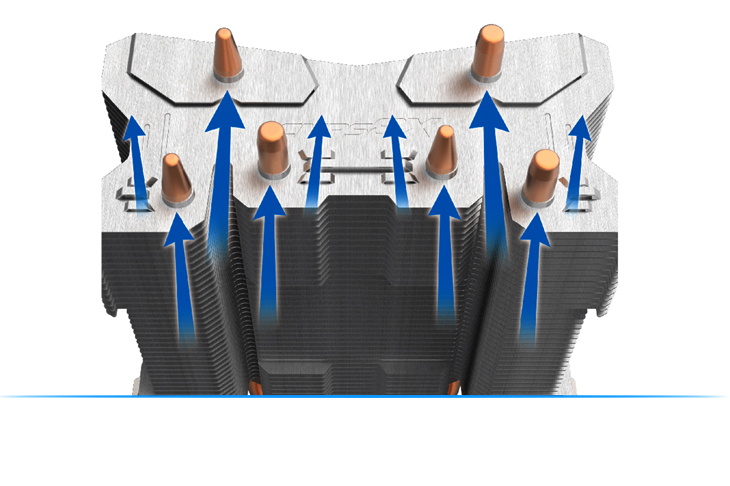

TAC(Turbulence Acceleration Convex) Fin


Heat sink’s bumpy shape has shortened the air movement distance between the fan and the heat pipe, thus minimizing the efficiency level differences between the heat pipes and increasing the heat transferring function via speeding up the hot air flow.

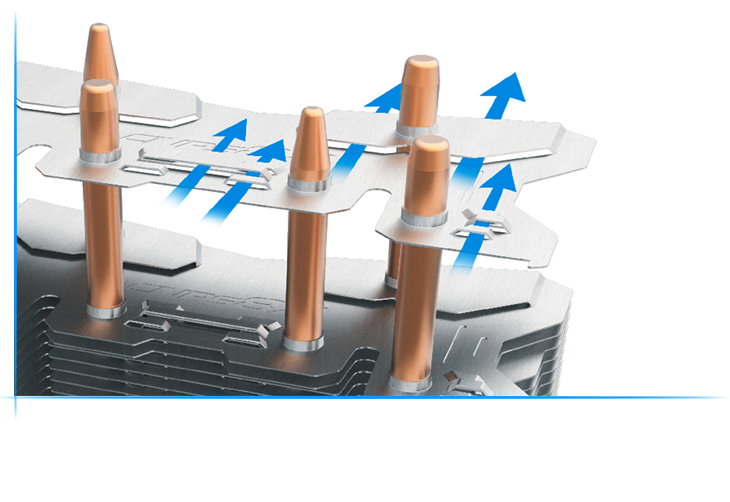

MLS (Multi-layer Slit) Fin


The Slit fin optimized for movement reduces resistance of air flow and covers wider surface area for heat transfer, which allows maximized heat sink function.

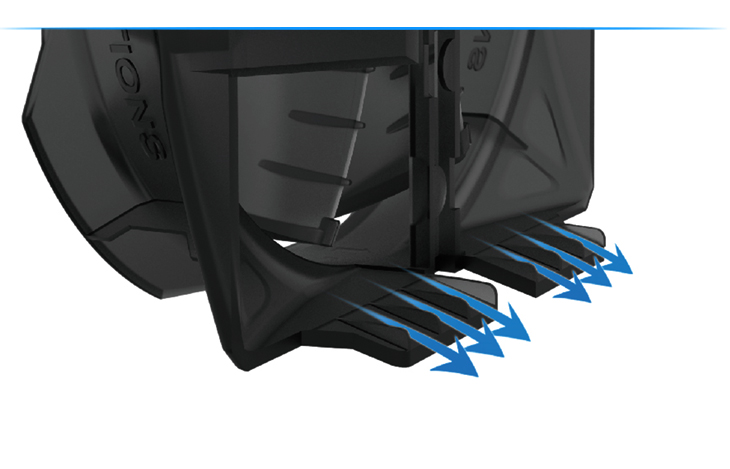

NCA (Near field Cooling Air Guide)


By distributing the air that is derived from the fan and not the hot air from heat sink, it cools down the surroundings of motherboard and provides more stabilized system.

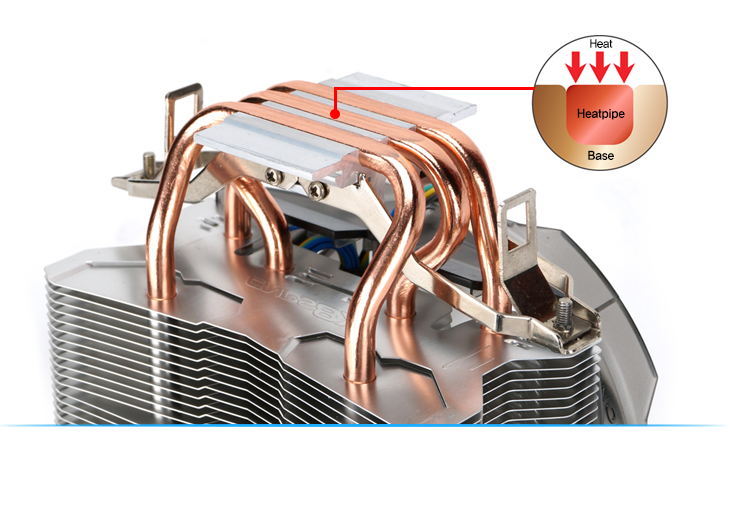

DTH(Direct Touch Heat-pipe) Base


Direct Touch Heat-pipe (DTH) Base technology transfers the CPU’s heat directly to heat-pipes, there by minimizing heat resistance and maximizing cooling performance.

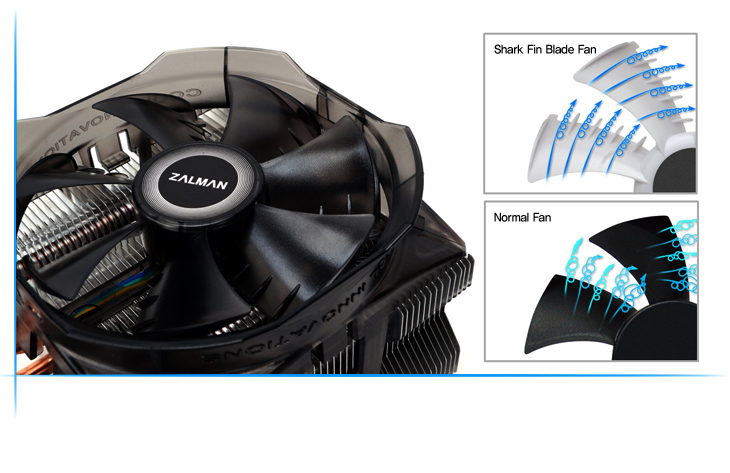

100mm Shark Fin Blade Fan Applied


Shark Fin Blade Fan is optimized for air flow and therefore it drastically decreases the air turbulence that is caused when the fan is operating. It also minimizes the noise and vibration and increases the fan power.

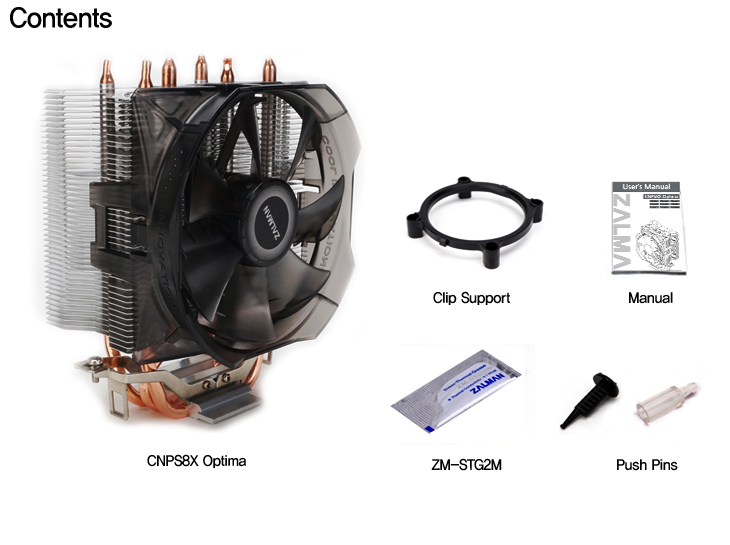

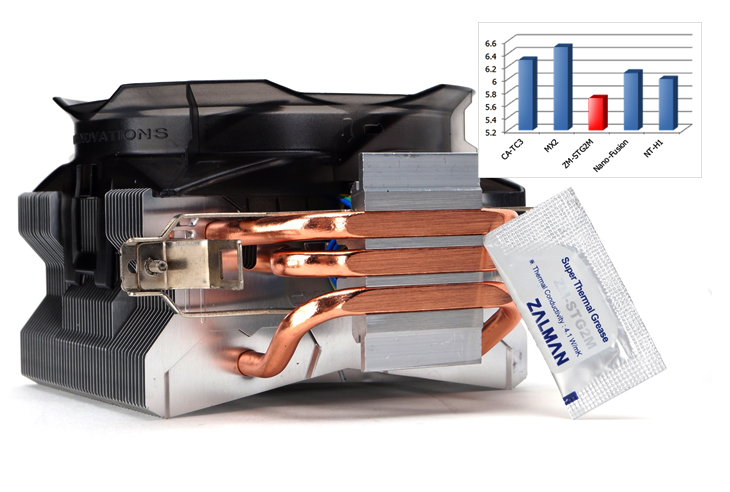

ZM-STG2M provided


The high performance super thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of CNPS8X Optima for intensified cooling performance.

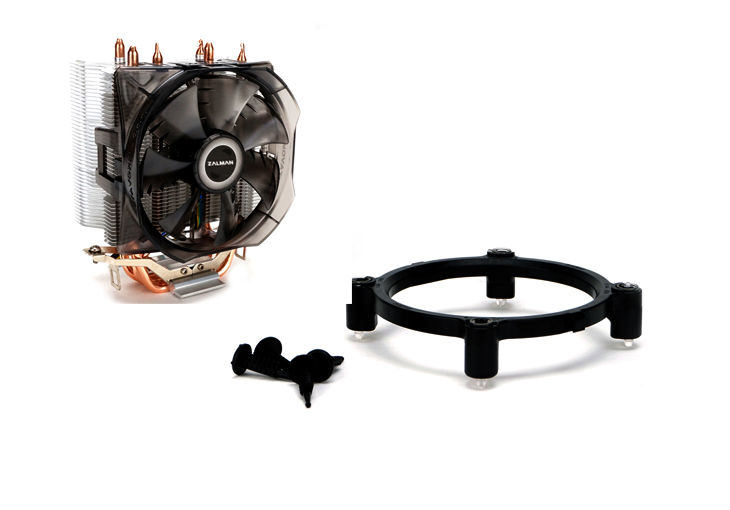

Easy & Simple Installment


Provides easy and simple installment directions even for beginners and uses multi-clip supporter for great compatibility.

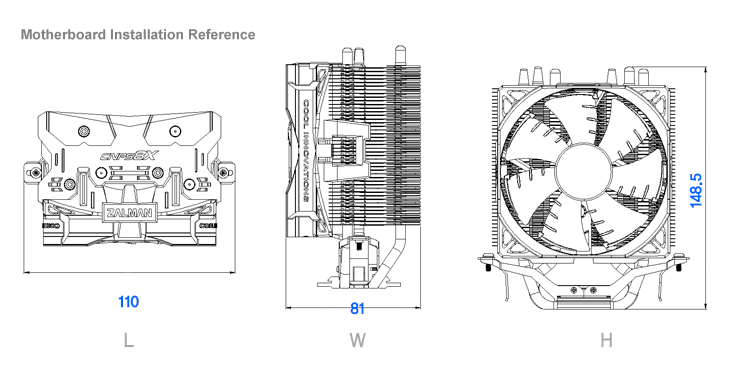

The cooler`s installation requires an unobstructed space of 110mm(L), 81mm(W), and 148.5mm(H), with the CPU as a central reference point. Please check if components such as ODD, VGA and PSU protrude into the required space.




Model



CNPS8X Optima



Dimension



110(L) x 81(W) x 148.5(H)mm



Weight



375g



Material



Pure Aluminum


Fan   Dimension   100Ø x 25(H)mm
Bearing Type   Long Life Bearing
Speed   1,200 ~ 2,100 ±10%

Noise Level



18.2 ~ 30.0dBA ±10%



Speed Control



PWM (Pulse Width Modulation)



Connector



4Pin



Input Voltage



12V



Thermal Grease


ZM-STG2M
