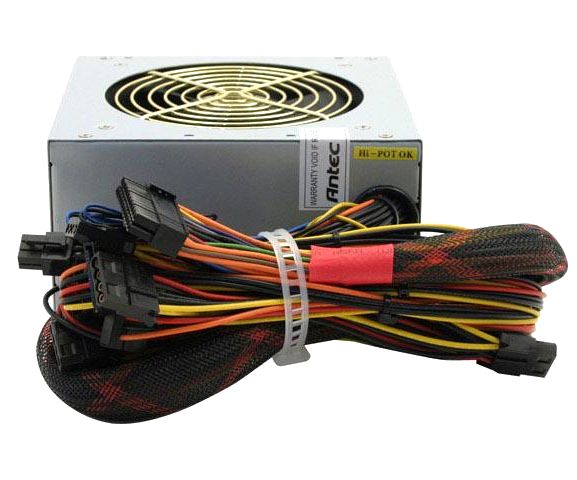

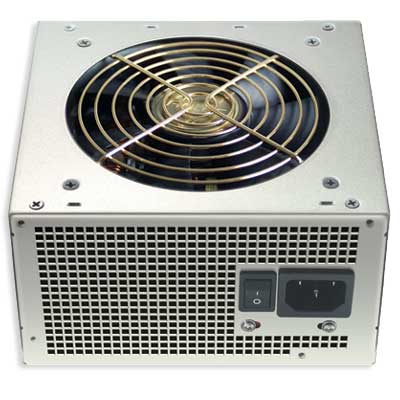

Antec TruePower II - 480W ATX12V v2.0 PSU
[129]
№: ++129 Manufacturer: Antec

€82 73

Notify me of updates to

available: no
This product is not available
82.72 EUR

Specifications:

Product Details:

A complete update of our award-winning line Our ground-breaking TruePower line has won over 50 awards around the world for its ability to deliver quality, stable power. So of course we've updated it completely. TruePower 2.0—poised to set the new standard for performance power supplies.

Features:

Single 120mm low noise fan
Dual 12V outputs, for stability and safety
True Spec noise level of 21.3 dBA measured at an independent lab using ISO 7779 standard
ATX12V 2.01 compliant. 24-pin main power connector with detachable 4-pin section
4 Serial ATA connectors
PCI Express graphic card power connectors
Dedicated output for more stability and less ripple noise
Feedback circuits for tighter load regulation (±3%) to maintain accurate voltage to all components
Industrial-grade protection circuitry prevents damage resulting from short circuits, power overloads, excessive current, excessive voltage , excessive temperatures
Fan Only power connectors allow True Power to control case fan speeds, reducing total system noise
MTBF: 80,000 hours
Safety approval: CB, CE, DEMKO, FCC Class B, FIMKO, EMKO, UL, VDE, TUV
Active Power Factor Correction (PFC) (Europe only)
Power Factor value greater than 90% (Europe only)
Gold plated connectors for superior conductivity
Important Note: The TruePower 2.0 Fan Only connectors are designed to power standard fans only. Attaching thermally-controlled fans to these connectors will likely result in unpredictable and undesired behavior. Thermally-controlled fans should only be connected to the standard 4-pin Peripheral Power Connectors. Please do not connect more than three fans to the Fan Only connectors.

FEATURES
Maximum Power	480 Watts
Switches	ATX Logic on-off additional power rocker switch 115/230 Volt selector switch
Special Connectors	ATX12V 3-pin Fan Sensor Fan Only SATA
Transient Response	+5V, +12V and 3.3V outputs return to within 3% in less than 1ms for 20% load change.
P. G. Signal	100-500ms
Over Voltage Protection recycle AC to reset	+5V trip point < +6.5V +3.3V trip point < +4.1V +12V trip point < +14.4V
Leakage Current	< 3.5mA @ 115VAC

DIMENSIONS
Unit Size	5.9" (W) x 3.4" (H) x 5.5" (D) 14.9cm (W) x 8.5cm (H) x 14cm (D)
Net Weight	5lbs.; 2.3kg

INPUT
Input Voltage	115 VAC / 230VAC
Input Frequency Range	47Hz to 63Hz
Input Surge Current	< 60A @ 115VAC
Input Current	12.0A for 115VAC 6 .0A for 230VAC
Hold-up Time	> 17ms at Full Load
Efficiency	> 70%
EMI/RFI	FCC Class B CISPR22 Class

OUTPUT
	+3.3V	+5V	+12V1	+12V2	+5V SB	-12V
Max. Load	30.0A*	38A*	18A*	18A	2.0A	1.0A
Min. Load	0.5A	0.5A	0.4A	0.4A	0A	0A
Load Reg.	±3%	±3%	±3%	3%	±5%	±5%
Ripple V(p-p)	50mV	50mV	120mV	120mV	50mV	120mV
* +5V, +3.3V, +12V1, 12V2 maximum output 460 Watts max.

ENVIRONMENTAL
Operating Temp.	0 to 50℃
Operating Alt.	Sea Level 10,000 ft.
Non-Operating Vibration	Operating: 10-300 Hz, 0.5G, 3 axes, 1 hr. ea. axis Non-operating: 10-300 Hz, 2.0G, 3 axes, 1 hr. ea. axis
MTBF	80,000 hrs. @ 25℃
Approvals	UL, CUL, FCC Class B, CB, TÜV
