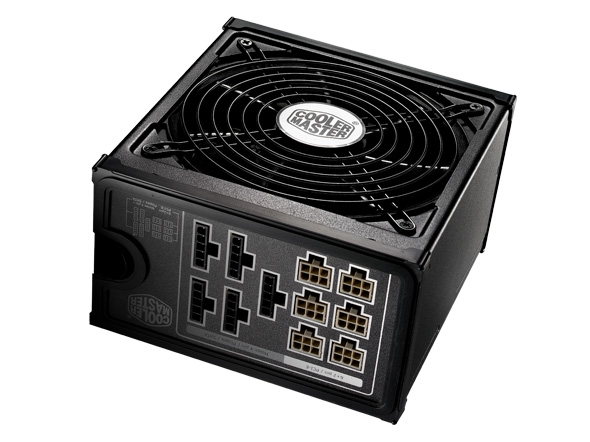

Introduction
Cooler Master adds M850 and M1000 to the Silent Pro series, giving extreme overclockers and/or ultra high-end systems all the power they need. With up to 80A on a single 12V rail, these power supplies deliver where it counts and won’t have any problems powering even the most demanding multi-graphic card systems. These units feature flat modular cables for improved airflow and cable management. It also comes with shock absorbtion silicon pads to remove possible vibrations.
Features
- Copper plus aluminum heatsink for efficient heat dissipation
- Japanese-made capacitors to enhance PSU outputs stability
- Compliance with the newest Intel standard ATX 12V V 2.3 and SSI standard EPS 12V V2.92
- Flat modularized cables to eliminate the clutter and improve airflow inside the chassis
- Ultra-silent operation with intelligent 135mm fan speed control
- Unique silicon pad eliminate the vibration
- Eco-design for energy and money saving by Active PFC.(>0.99) / high efficiency (>85%)
- Single +12V rail for up to 80A for high demanding SLI
Specifications
| Model |
RS-850-AMBA-J3 |
| |
| Type |
Intel ATX12V V2.3 ? SSI EPS 12V V2.92 |
| |
| Dimension (W / H / D) |
150(W) x 86(H) x 165(L) (mm) |
| |
| Input Voltage |
90~264V (Auto Range) |
| |
| Input Current |
12A@115Vac, 6A@230Vac |
| |
| Input Frequency Range |
47~63Hz |
| |
| PFC |
Active PFC >0.9 |
| |
| Power Good Signal |
100~500ms |
| |
| Hold Up Time |
>17ms |
| |
| Efficiency |
85% Typically |
| |
| MTBF |
>100,000hrs |
| |
| Protection |
OVP/ UVP/OCP/OPP/OTP /SCP |
| |
| Output Capacity |
850W |
| |
| Max. Output Capacity |
1020W |
| |
| Operation Temperature |
0~40°C (Nominal Input Voltage) |
| |
| Regulatory |
TUV / CE / GOST / C-tick / UL / FCC / CCC / BSMI |
| |
| Fan |
135mm ultra silent fan |
| |
| Certifications |
SLI / 80 Plus Bronze |
| |
| Connector |
M/B 20+4 Pin Connector x 1
CPU 4+4 Pin x 2
PCI-E 6+2 Pin x 6
4 Pin Peripheral x 6
SATA x 9
4 Pin Floppy x 1 |
| |
