DeepCool Case watercooled - GENOME ROG
[DP-ATXLCS-GEN-ROG]
№: ++2517 Manufacturer: DeepCool

€258 72

Notify me of updates to

available: no
This product is not available
258.72 EUR

Specifications:

Description

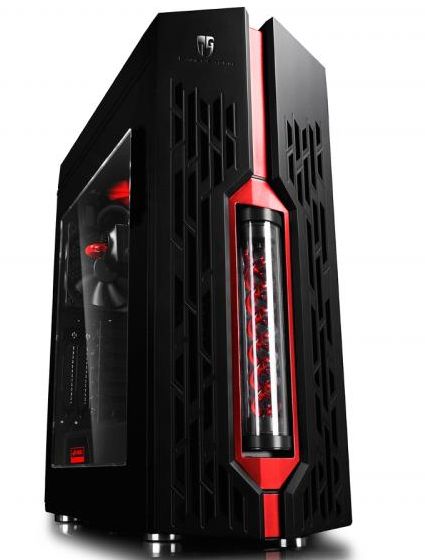

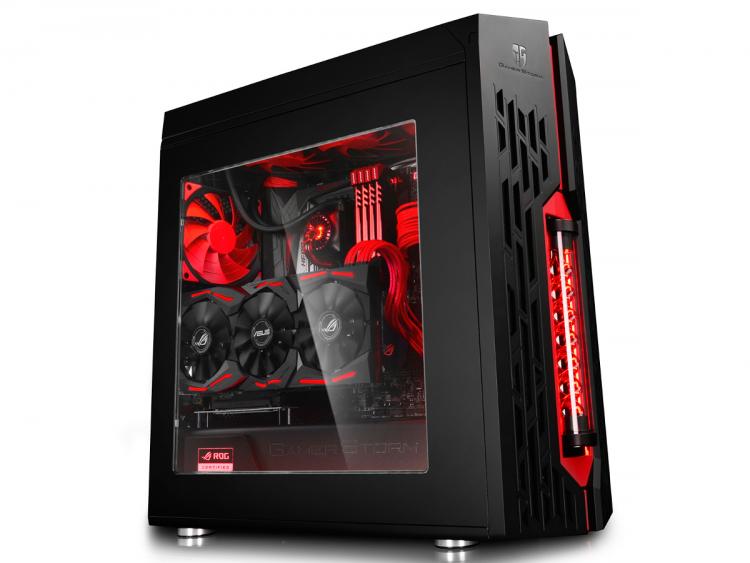

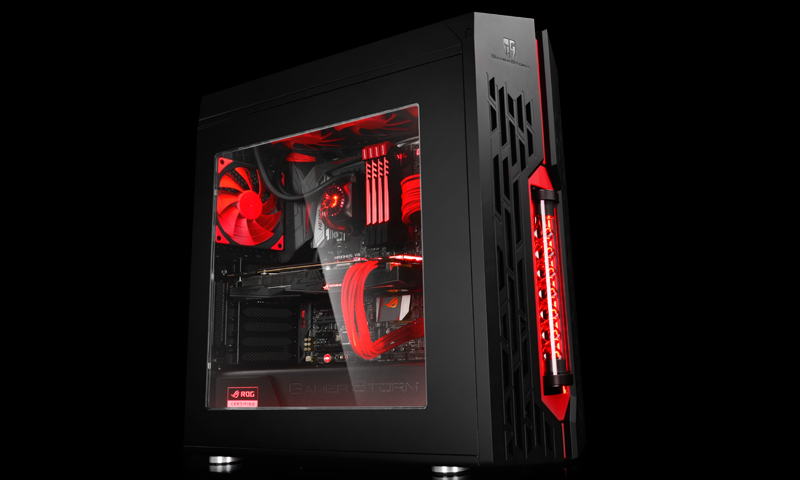

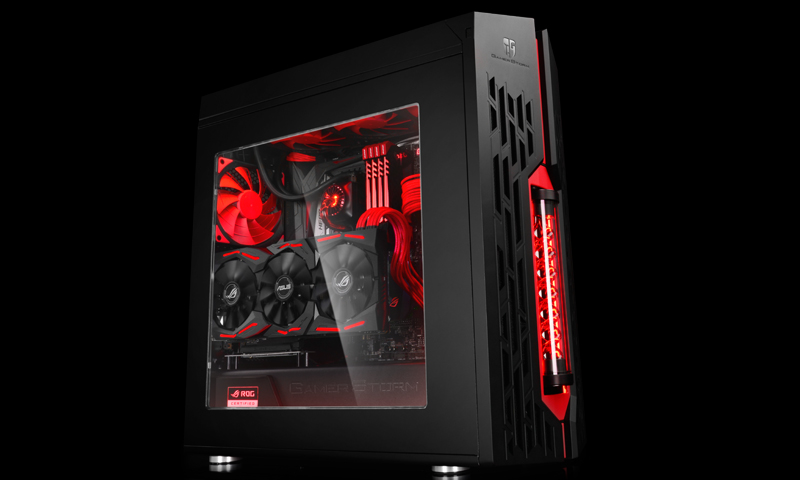

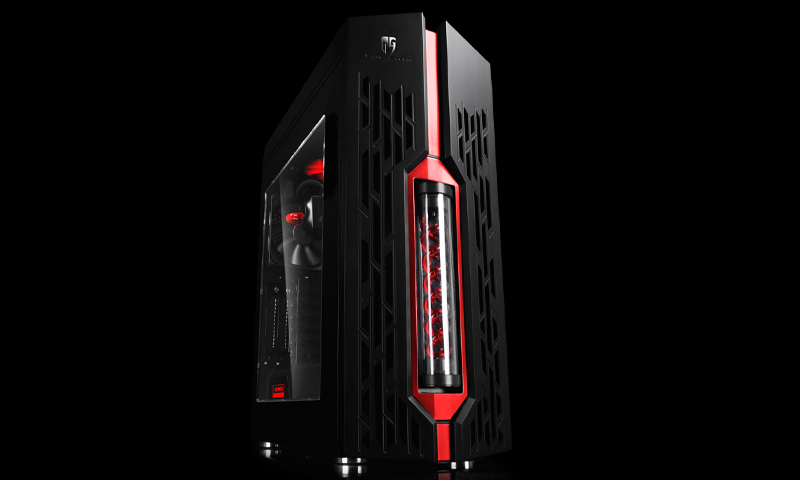

Deepcool is proud to announce a brand new version of the Genome Integrated Liquid Cooling Chassis – designed specifically for ASUS ROG mainboard– Genome ROG Certified Edition.The Aura RGB Lighting system lets you choose between millions of synchronous colour options for your new system build, perfect for expressing your individual style. Lighting options include: Water Block • Reservoir • PSU Shroud • LED Strip.

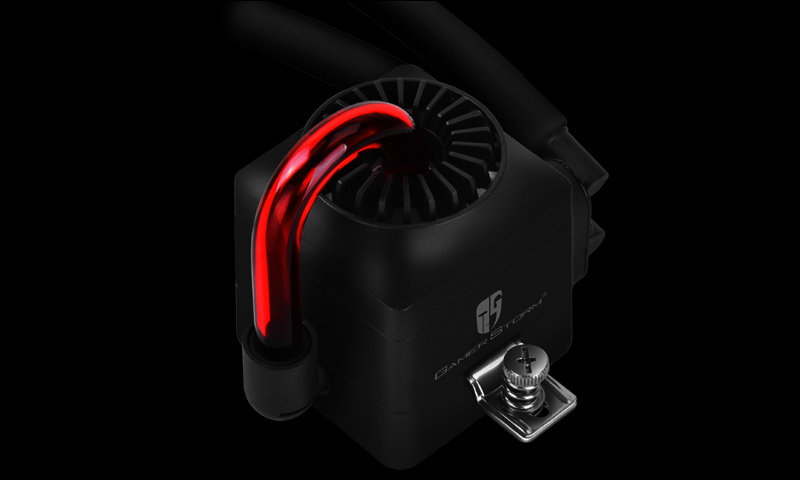

Thanks to the integrated remote-control RGB lighting system, multi-award winning Deepcool Captain Water Block can now cast a stunning glow across the interior of your rig – you just need to choose the perfect colour combo for your design.

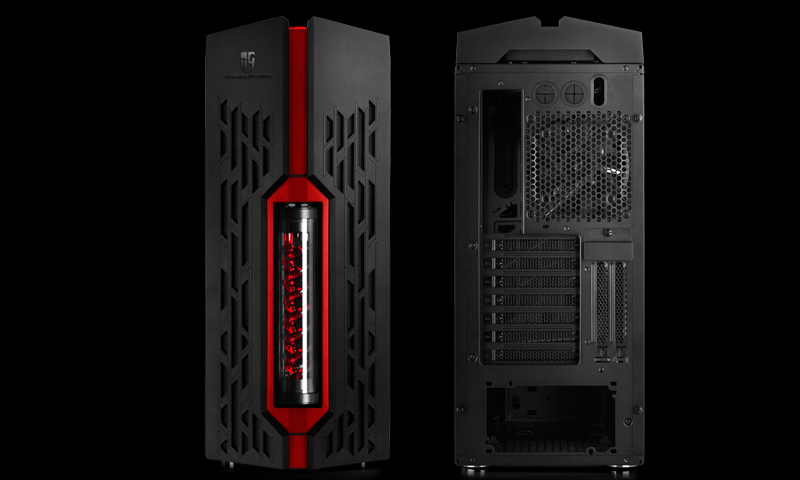

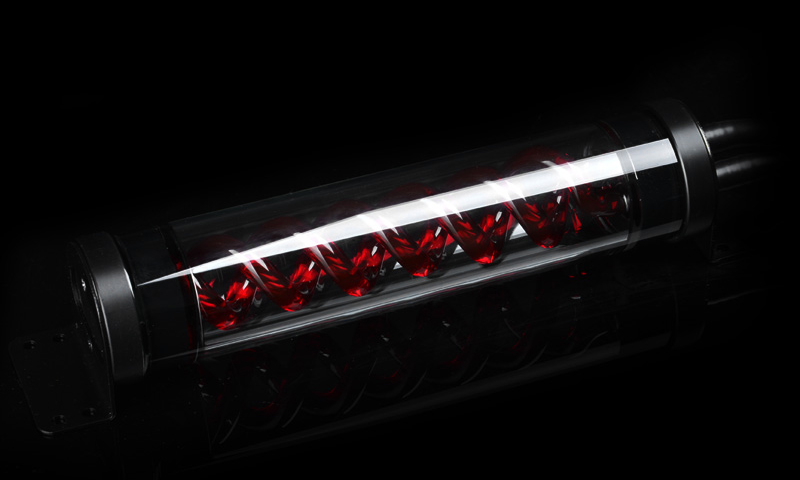

That level of optimisation is carried through to the clear, cylindrical reservoir – complete with double helix front panel.

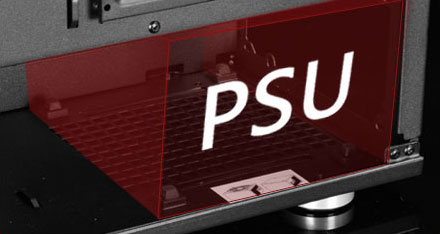

The innovative PSU Shroud and integrated LED strip mounting slots with RGB colour command system are the perfect choice for colour conscious gamers and specialist system builders alike.

This level of certified integration with the ASUS ROG mainboard series is made possible through the inclusion of the Aura RGB Header, which gives you instant control over your system’s lighting.

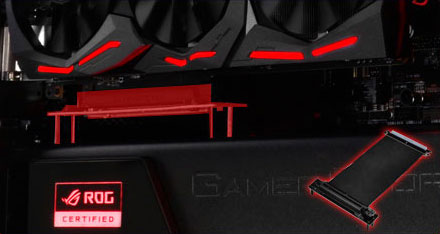

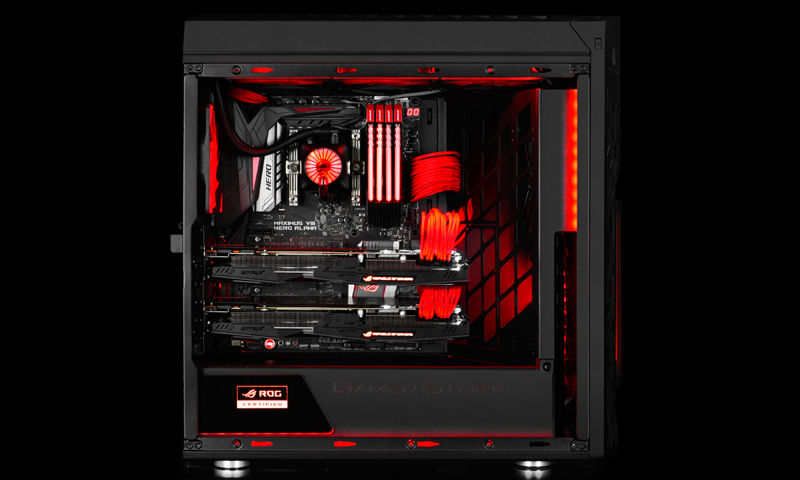

1.Now you can show off your prized GPU by mounting it vertically with the PCI-E extension cable included – it’s easy to install and provides great stability and durability.

2. Additional radiators or fans can now be easily added on the front panel by taking out the removable HDD cage to release extra mounting space.

3.Thanks to the widened gaps in the angled panel, Genome ROG Certified Edition has a better compatibility with otherboard.

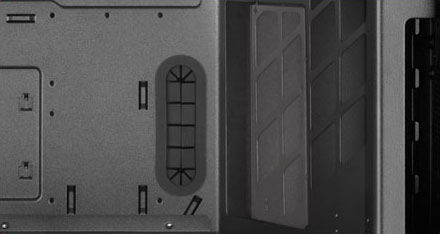

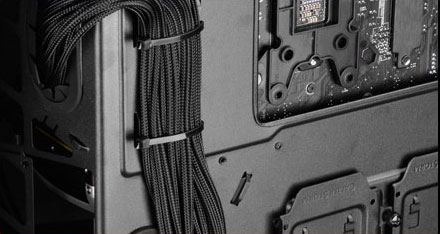

4.A new configuration of cable routing holes play a vital role in simplifying cable management and helps you to achieve a neat presentation of your system.

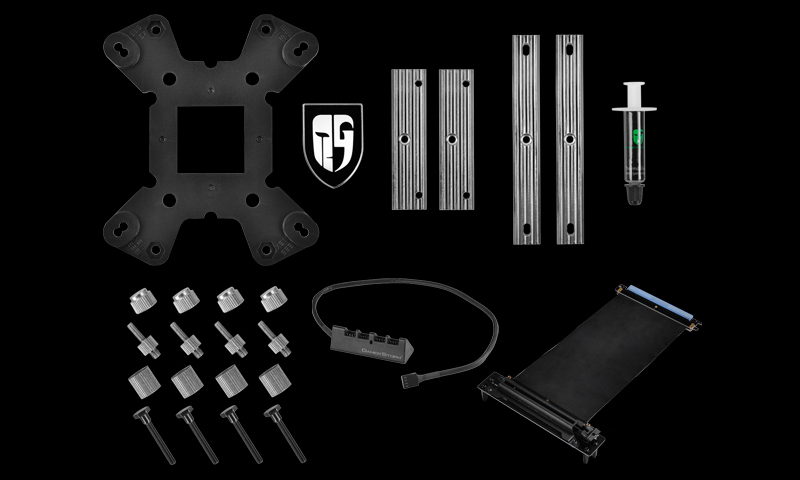

5. Updated tool-free 100% metal clip supports all CPU sockets.

6.Bottom loaded PSU is designed for effective cooling and easy installation.

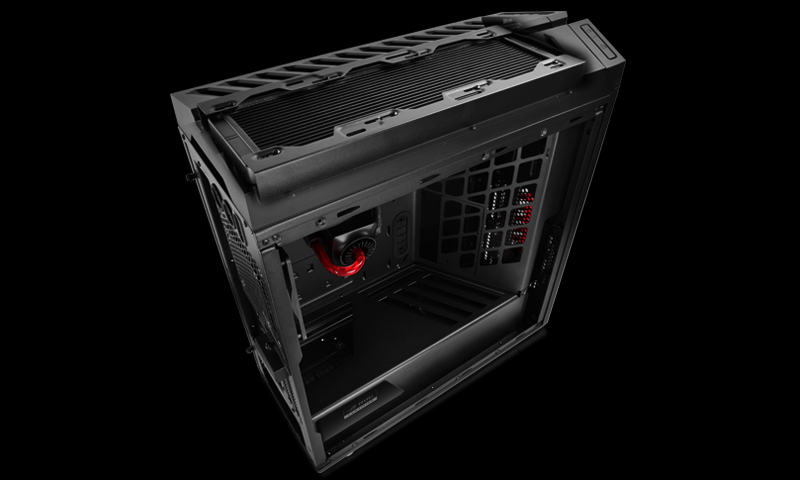

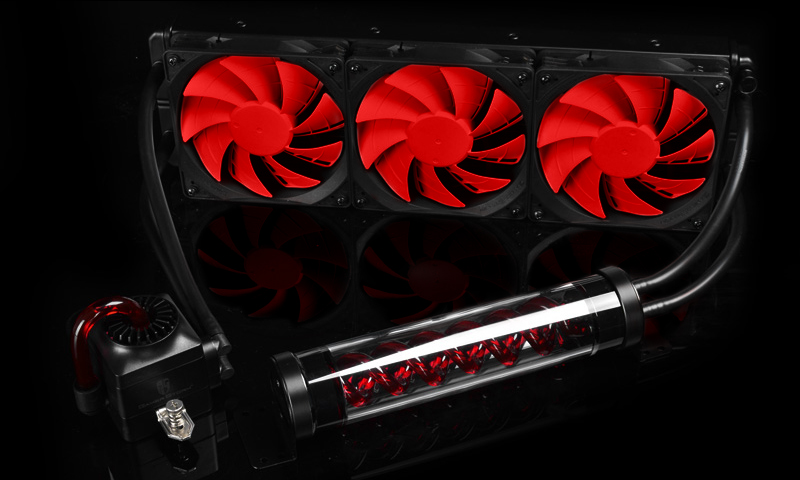

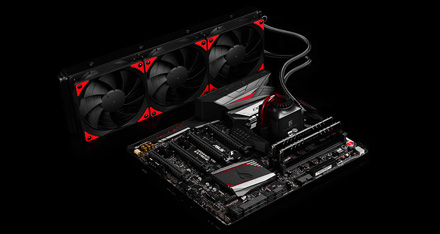

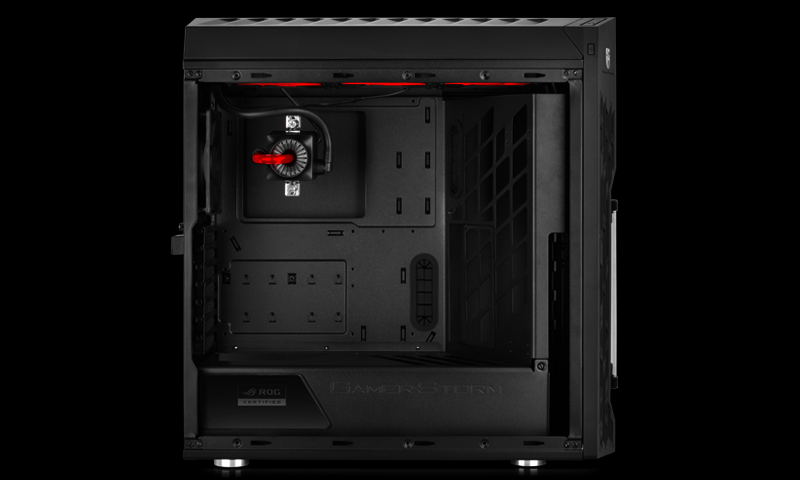

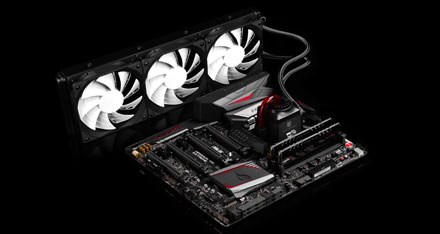

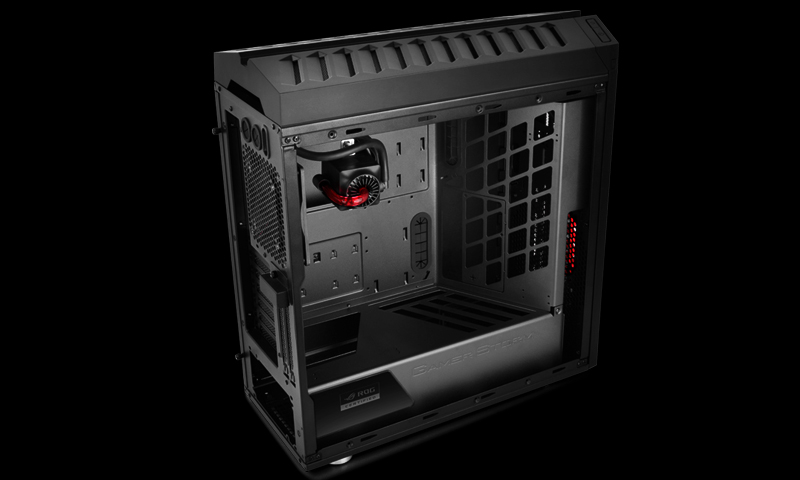

An optimized ATX chassis with an integrated 360mm radiator liquid cooling system
Certified by ROG with ROG exclusive features

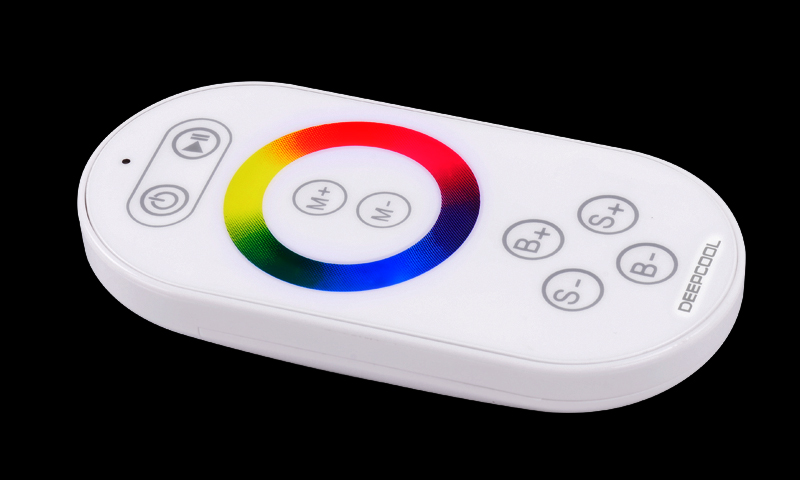

Integrated remote-control RGB lighting system for ROG logo, water block, reservoir and LED strips

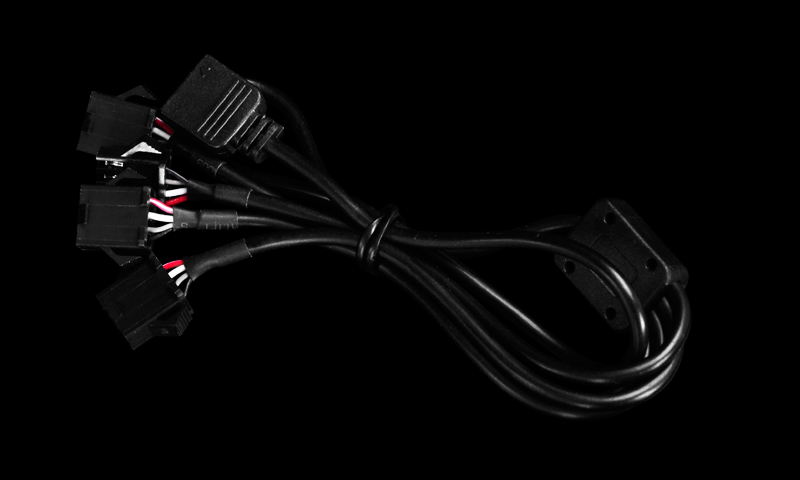

One extra Aura RGB Header, which gives you instant control over your system’s lighting

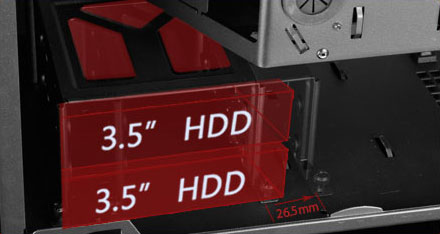

Two fixing positions for 3.5'' HDD cage to offer a flexible space for PSU
Supporting 120/240/280/360 radiator on the top and 120/240 radiator, 200mm fan in the front
Extra space reserved for DIY water cooling system
Optimized extra slot for vertical installation of graphic card, keep it more stable! (PCI-E extension cable included)

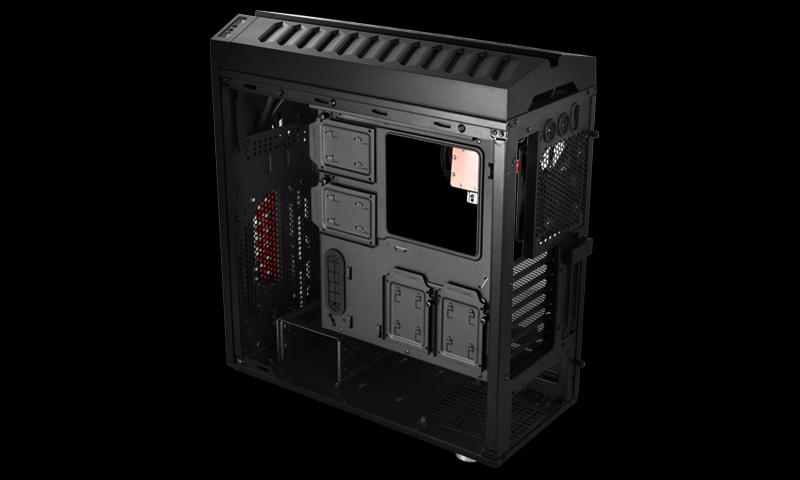

Much bigger cutout on MB tray for easier CPU cooler installation

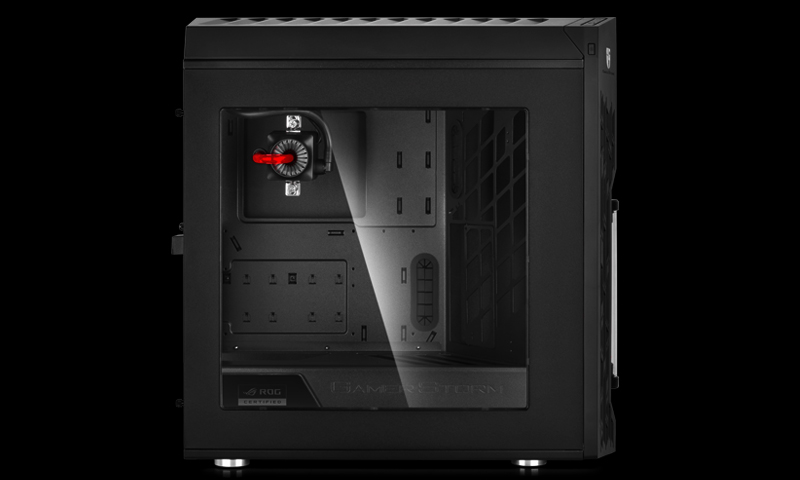

USB3.0*2 * Bigger side-window *Metal logo on front panel
Better cable management
With rubber buffer and dust filter for PSU

Application For

Intel Socket 150W

LGA-2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150

High End Desktop i7
Core i7 Extreme/i7/i5/i3
Pentium G
Celeron G

AMD Socket 220W

FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class

Technical Spec

Motherboards	(MAX:305×275MM)ATX-L/ATX/MICRO ATX/MINI-ITX
Materials	SGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)
Product Dimension (LxWxH)	506×210×505 MM
Net Weight	9.77 kg
Gross Weight	12.09 kg
Liquid Cooler Compatibility	120/240mm at front; 120/240/280/360mm at top
3.5" Drive Bays	2
2.5" Drive Bays	2
I/O Panel	2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots	7 (plus 2 extra slots for vertical VGA card installation)
Cooling Fans	Pre-installed: Rear: 1×120mm fan; Top: 360mm liquid cooling system; Optional: Front: 2×120mm or 1×200mm fan
Power Supply Type	ATX PS2
VGA Compatibility	330mm
Carton Dimension	575×285×600 mm
Color of LED Lights	RGB Color LED
Radiator Dimensions	395X120X32mm
Fan Dimensions	120X120X25mm(3PCS)
Fan Speed	500±200-1800±10%RPM (4Pin)
Fan Air Flow	229.56CFM（MAX）
Fan Noise Level	17.6~31.3dB(A)
Fan Bearing Type	Hydro Bearing
Fan Rated Voltage	12VDC
Fan Rated Current	0.18±10%A(MAX)
Fan Power Consumption	2.16W
Pump Connector	3Pin
Pump Operating Voltage	6~13.8VDC
Pump Rated Voltage	12VDC
Pump Speed	2200±10%RPM
Pump Load Current	0.16±15%A
Pump Power Consumption	1.92W
Net Weigt	2093±10g (liquid cooling system only)

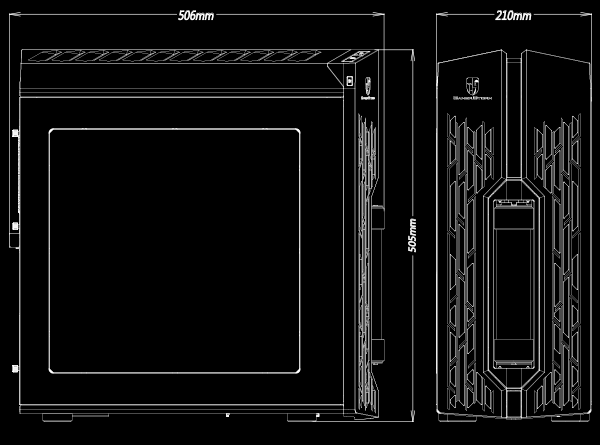

Product Dimension
