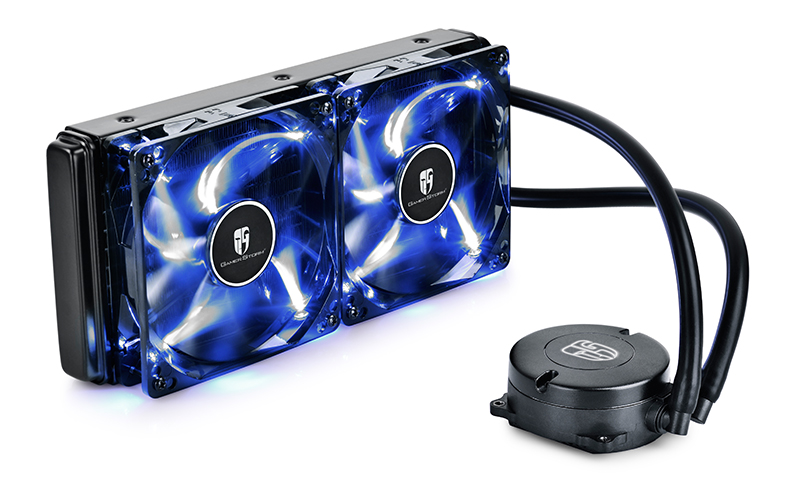

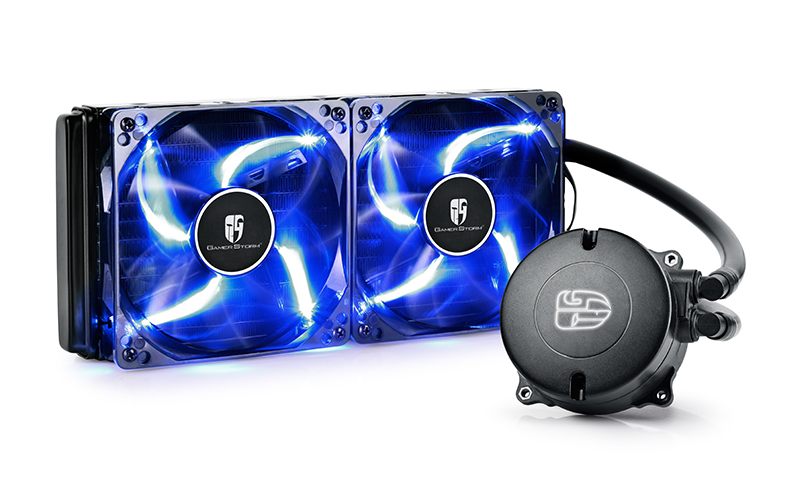

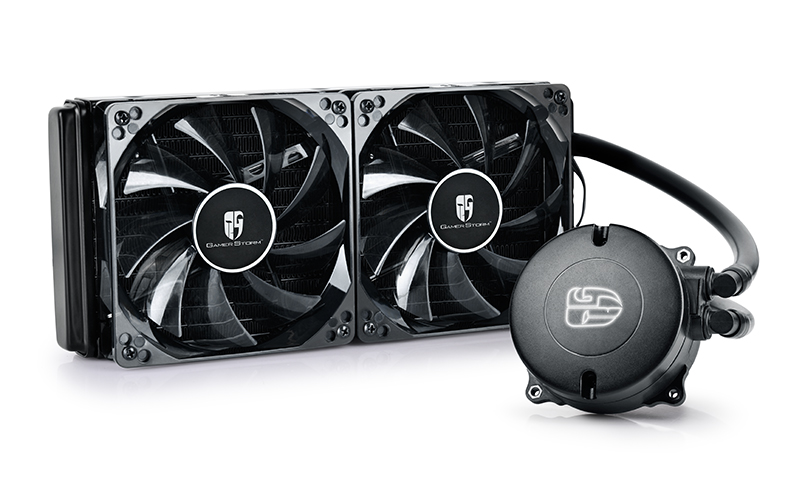

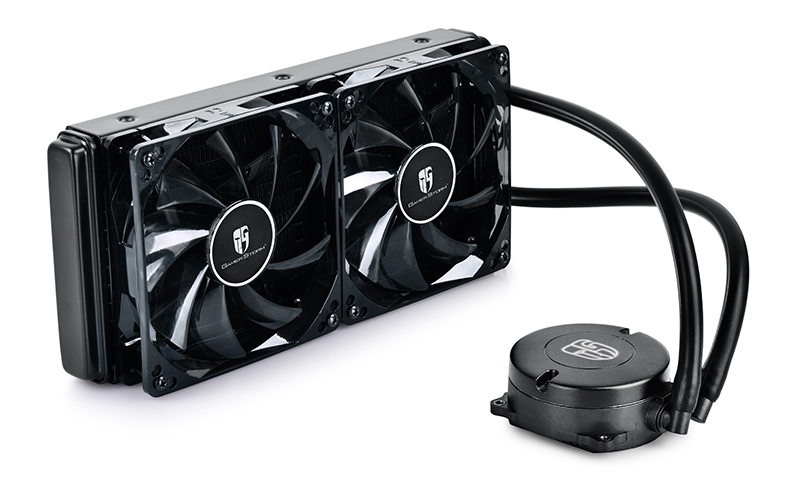

The new vision of Maelstrom retains some key factors of others from
Maelstrom Series: long lifetime bearing, 0.2mm high-density water micro
channel & copper block, aluminum radiator, bionic LED breathing
light on pump and 120PWM fans, especially the assembled fan of Maelstrom
240T features blue LED. All of these features have enabled Maelstrom
240T to have high performance, low noise, long lifespan and an esthetic
appearance.
Long lifetime zirconia ceramic bearing to make 120,000 hours running safely
Bionic LED breathing light lightening up while operating
High-quality EPDM rubber tube to offer a better liquid flow channel
0.2mm high-density water micro channel & copper block to offer a highly efficient thermal conduct
240mm
aluminum fins array optimized for a lower fan speed and noise, also the
standard mounting holes built-in easy to change new 120mm fan
120mm PWM fan with blue LED LIGHT
Universal solution, easy to install

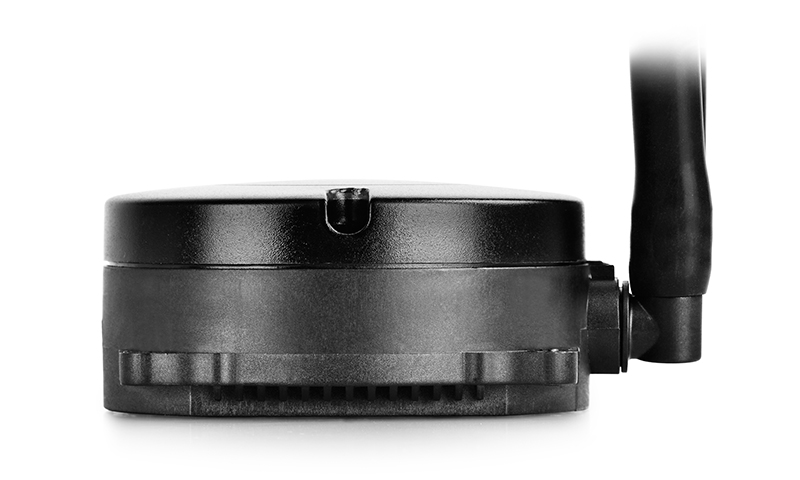

High performance pump with silent design to power the efficient liquid circulation.
Long lifetime zirconia ceramic bearing to make 120,000 hours running safely.

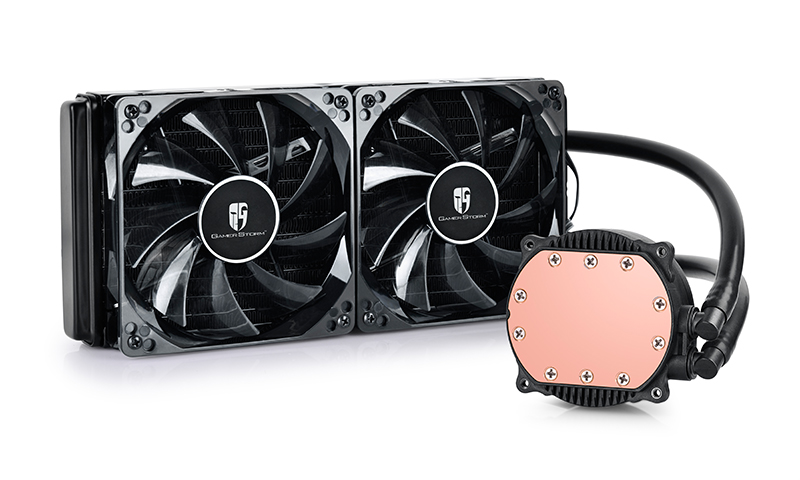

Big size copper base to transfer heat fastly.
High-quality EPDM rubber tube to offer a better liquid flow channel.

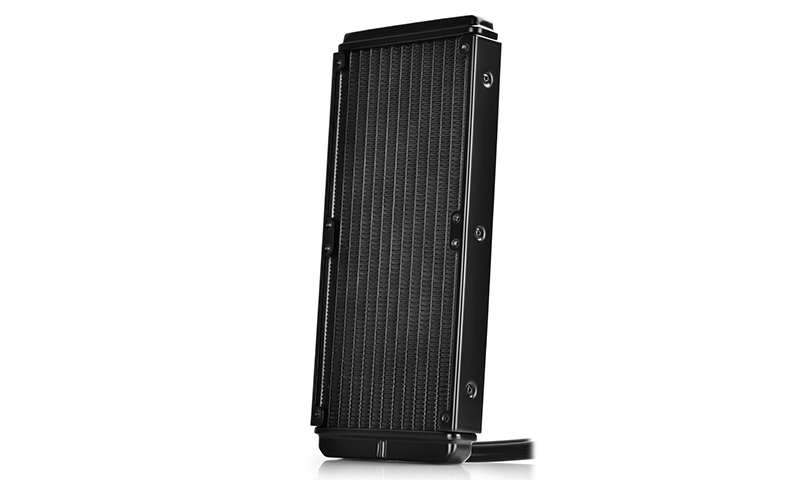

240mm
aluminium fins array optimized for a lower fan speed and noise, also
the standard mounting holes built-in easy to change new 120mm fan.

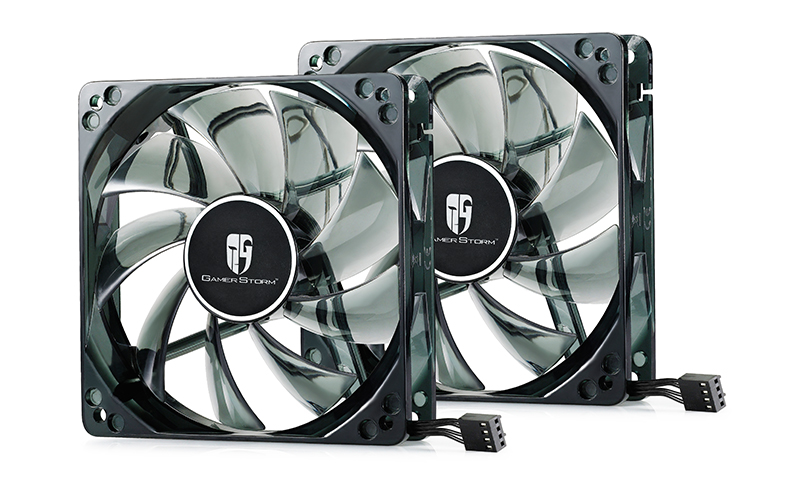

PWM function fan with blue LED light.

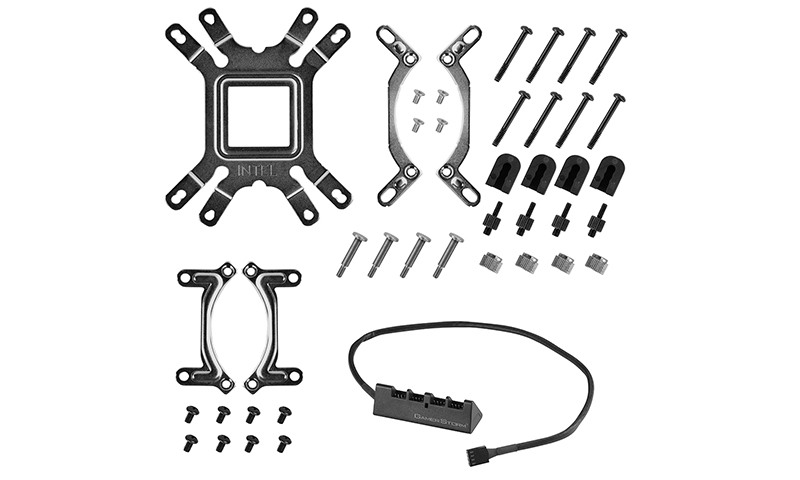

Compatible with all sockets of Intel &AMD processor, easy to install.

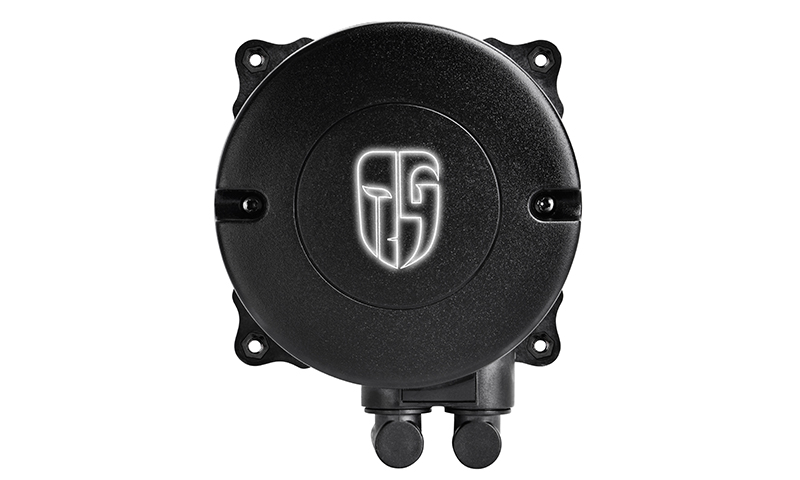

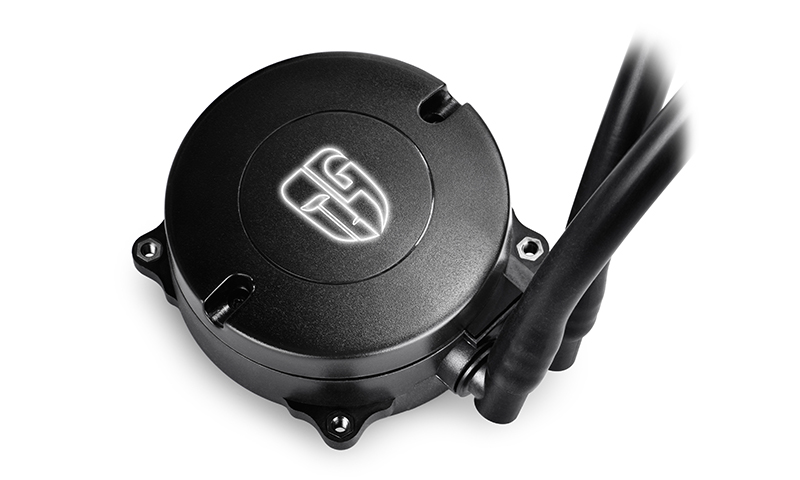

Bionic LED breathing light lightening up while operating.
Application For
Intel Socket 150W
LGA2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Pentium G
Celeron G AMD Socket 140W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class
Technical Spec
Fan Dimensions 120X120X25mm(1pcs) +PWM + blue LED | Fan Speed 600±150-1800±10%RPM | Fan Air Flow 167.28CFM(MAX) | Net Weight 1100±10g |
Fan Air Pressure 3.08mmH2O(MAX) | Fan Life Expectancy 30000 hours | Fan Noise Level 17.8~34.1dB(A) | Fan Bearing Type Hydro Bearing |
Fan Connector 4Pin | Fan Rated Voltage 12VDC | Fan Rated Current 0.27±10%A(MAX) | Fan Power Consumption 3.24W |

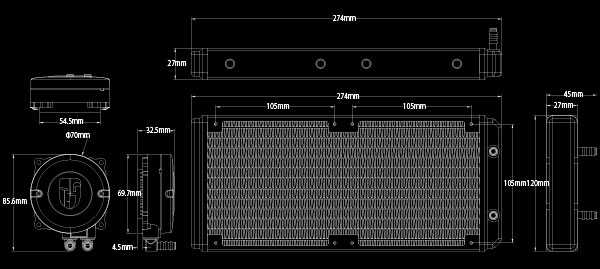

Main system Dimensions 70X85.6X31.5mm | Radiator Dimensions 274X120X27mm | Radiator Material Aluminum | Pump Life Expectancy 120000 hours |
Pump Connector 3Pin | Pump Operating Voltage 10.8~13.2VDC | Pump Rated Voltage 12VDC | Pump Fan Speed 2400±10%RPM |
Pump Load Current 0.2±10%A | | | |
