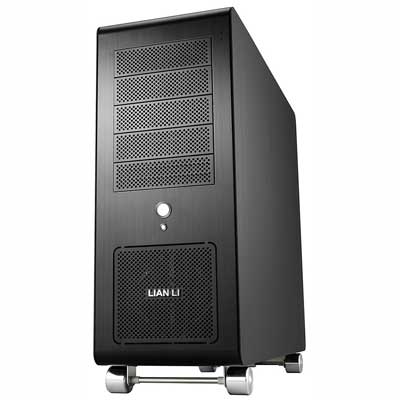

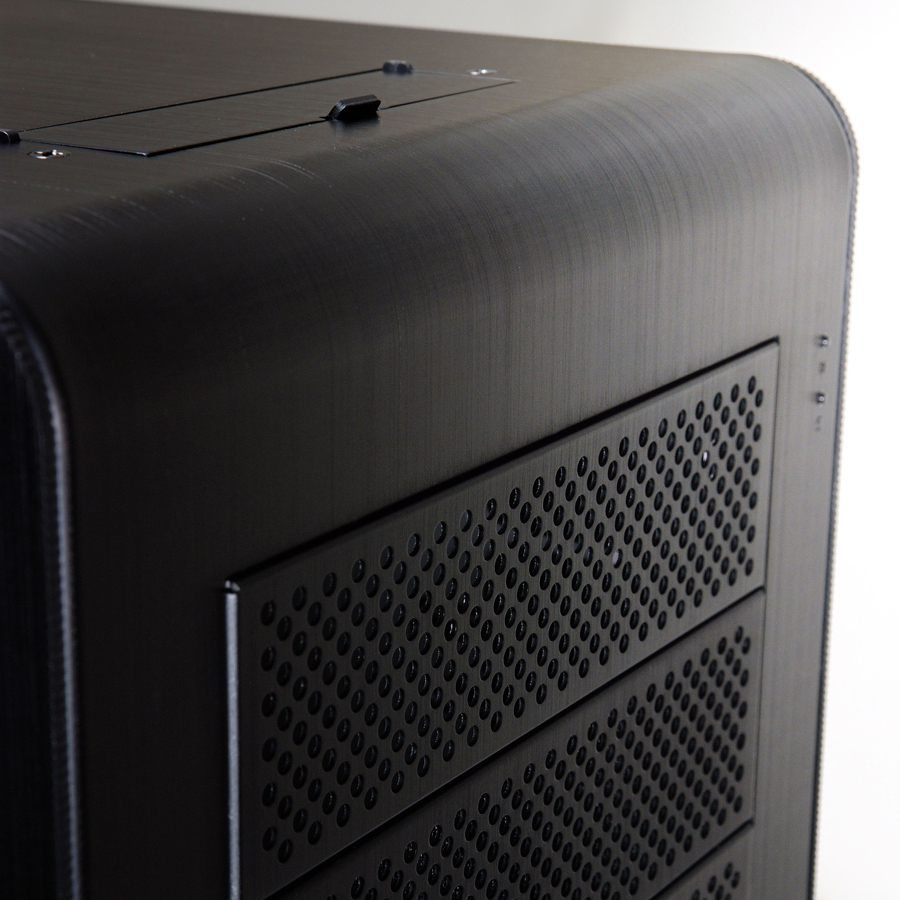

The PC-V1010 has a rounded edge, unlike other chassis. It uses 2mm to 1.2mm thick aluminum panel formed to this unique design with hair-line brushed anodized aluminum metallic finishing

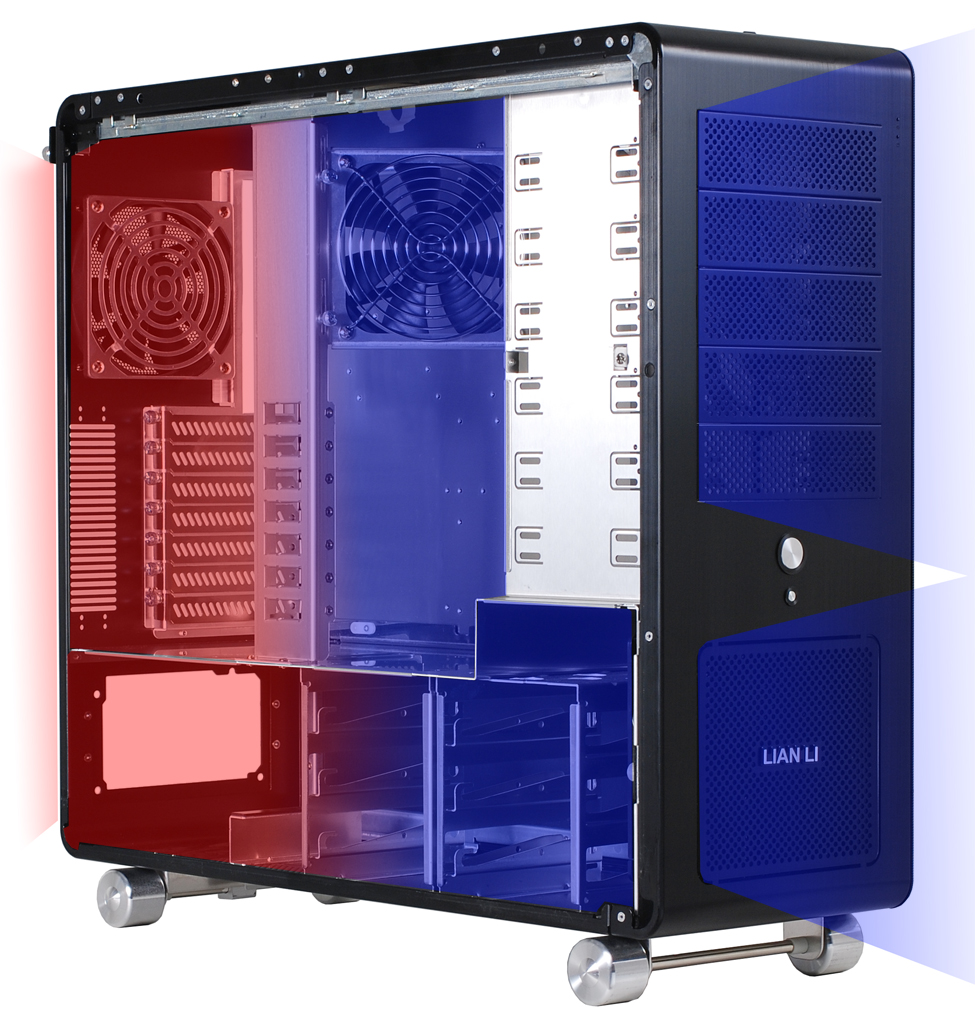

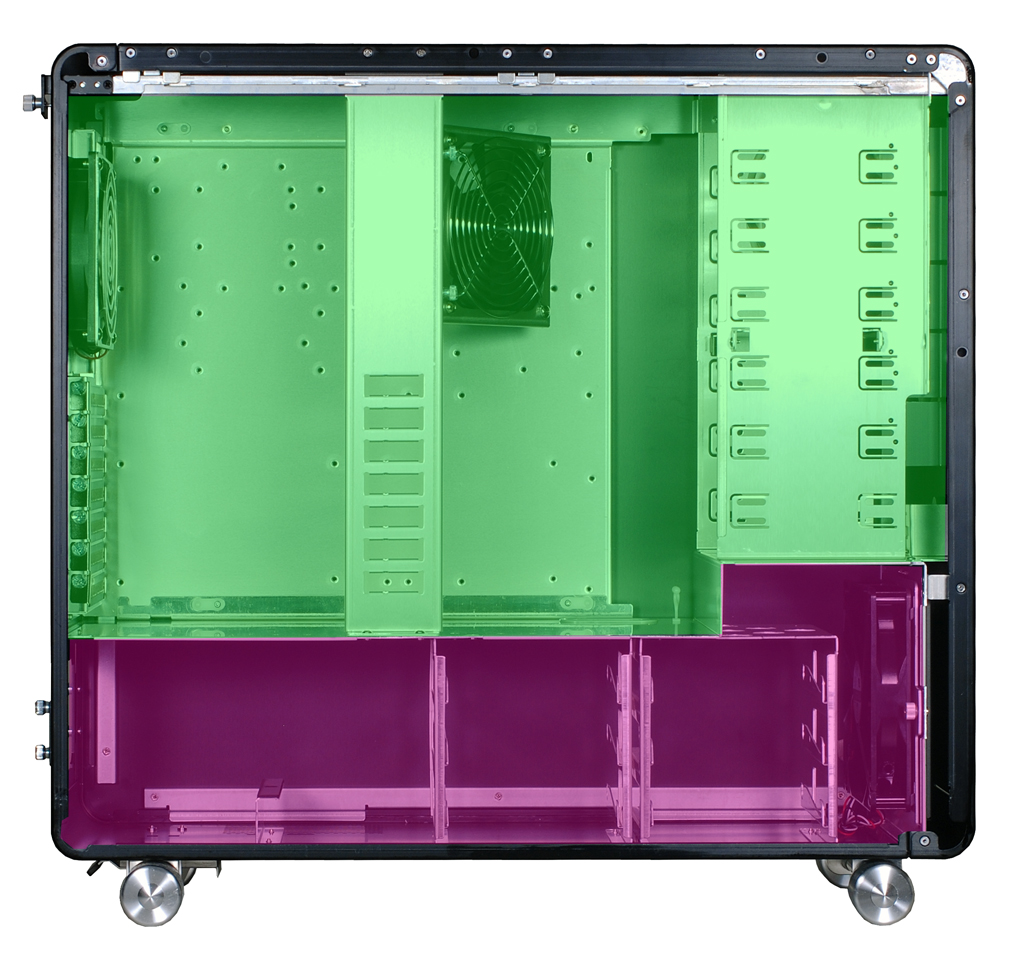

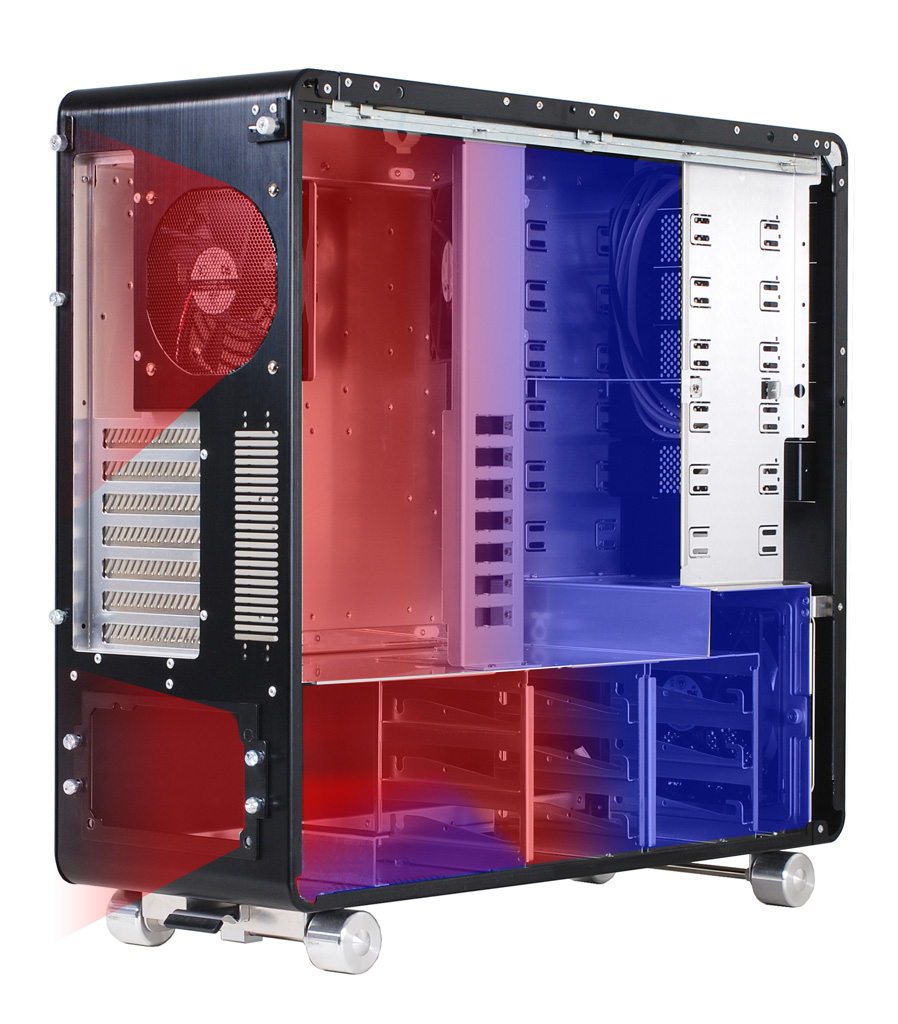

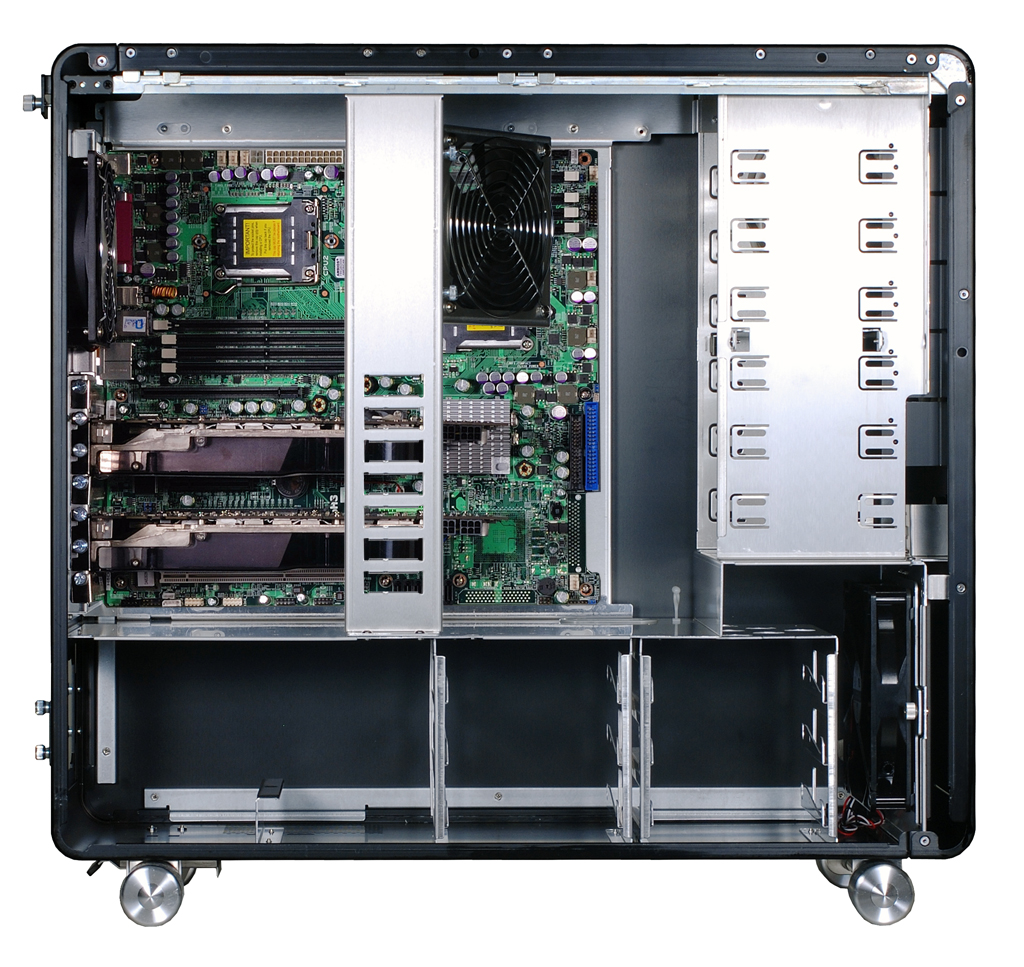

The PC-V1010 has multi-heat zones designed to create a better thermal solution and tidy up internal space (see additional image to the right)

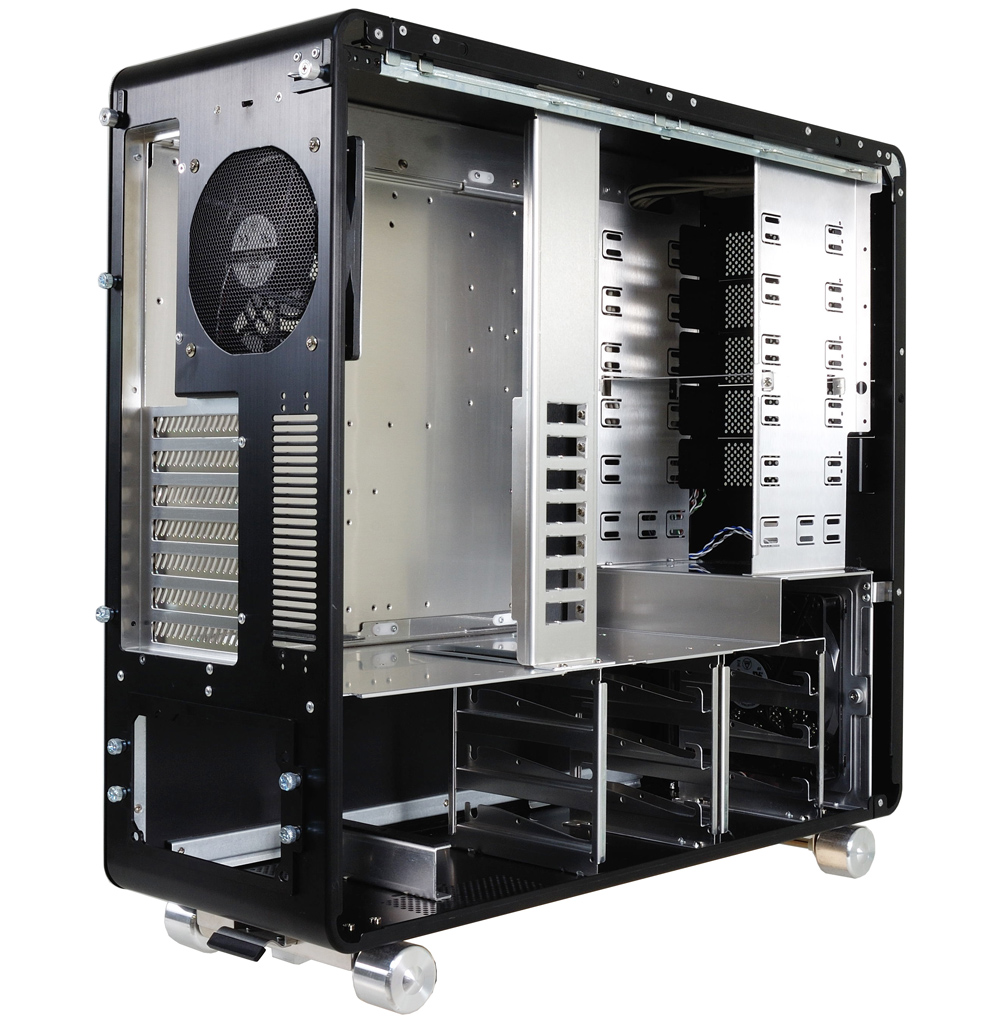

Huge internal space fits E-ATX motherboards, graphics cards that can be up to 395mm long, room for 6 hard drives, and a lot of internal space for liquid cooling system. Ideal for PC gaming systems.

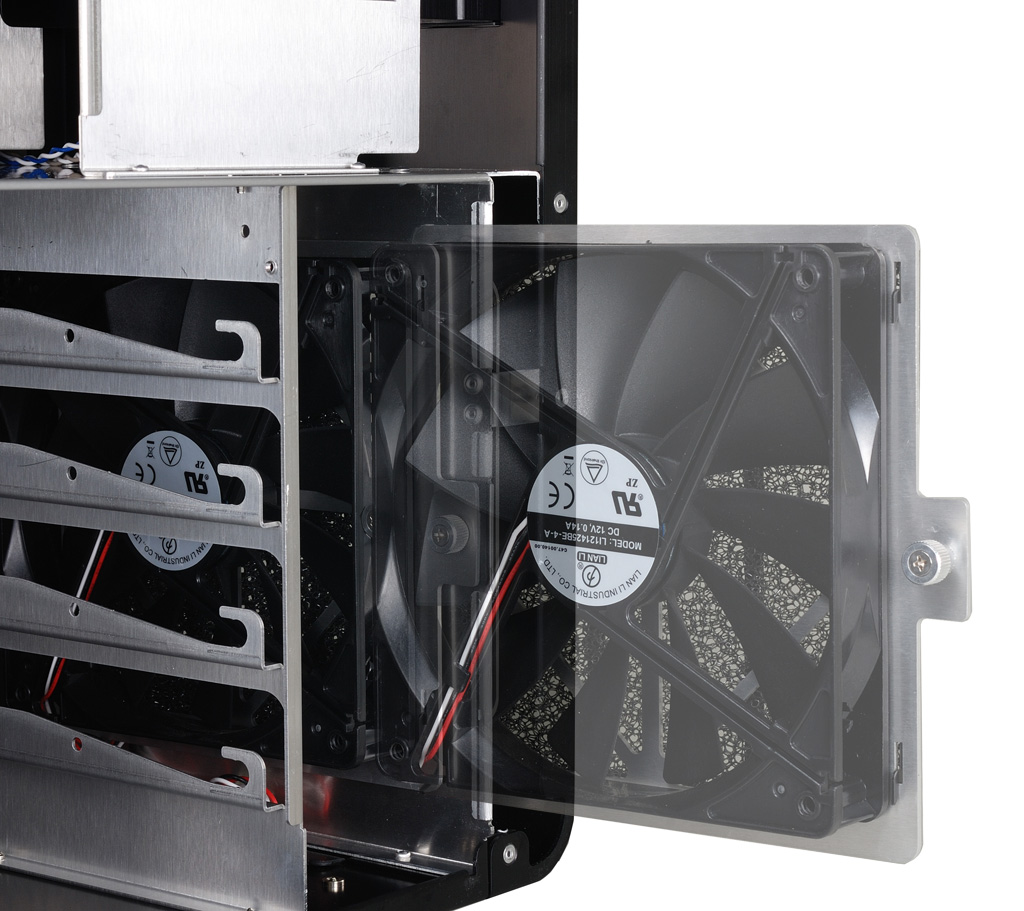

The PC-V1010 uses large size fans to improve the silent running of your system. There is a 140mm fan in the front and a 120mm fan at the rear, featuring low RPM with high air flow to get the best balance between silence and cooling.

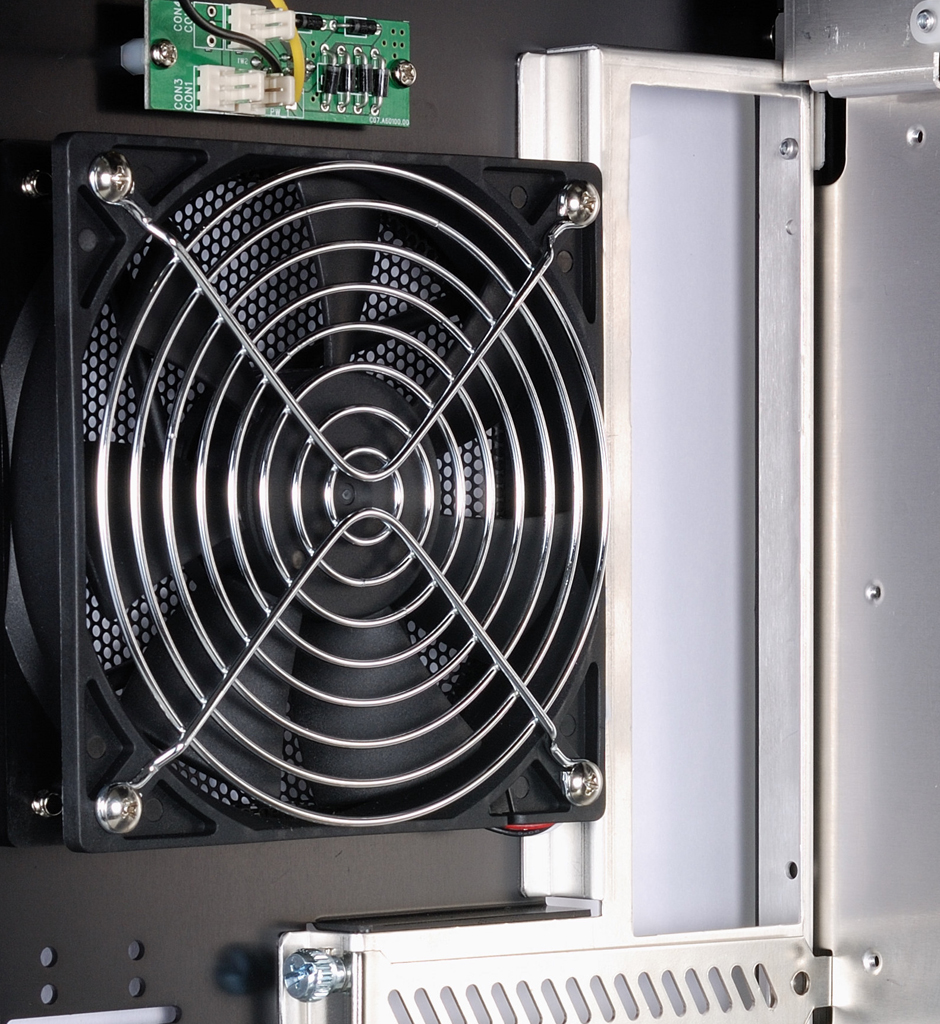

To reduce the noise, Lian Li have fitted anti-vibration rubber rings on the fan holder to absorb the vibrations which cause the noise in the first place.
There are anti-vibration kits fitted in the chassis also to stop the vibrations that cause noise.
| |
| Model |
PC-V1010A/B |
| Case Type |
Super Mid Tower |
| Dimensions |
210 x 543 x 560 mm ( W, H, D) |
| Front bezel Material |
Aluminum |
| Color |
Silver / Black |
| Side Panel |
Plain |
| Body Material |
Aluminum |
| Net Weight |
|
| 5.25" drive bay (External) |
5 |
| 3.5" drive bay (External) |
|
| 3.5" drive bay (Internal) |
6 |
| Expansion Slot |
7 |
| Motherboard |
E-ATX, ATX, M-ATX |
| System Fan (Front) |
14cm Ball Bearing Fan (800~980~1180RPM)Factory setting to mid speed@980RPM |
| System Fan (Top) |
|
| System Fan (Rear) |
12cm Ball Bearing Fanx2 ( 1020~1240~1500RPM)Factory setting to mid speed@1240RPM |
| I/O Ports |
USB 2.0 x 4, IEEE1394 x 1, E-SATA x 1, HD+AC97 Audio |
|
Key Features |
|
|
Hand Crafted,
Made in Taiwan
|
|
Hair-line Brush & Anodized Finishing |
|
|
Heat Zone Design (Separate into Two Heat Zones) |
|
Huge Internal Space, Fit E-ATX and Graphics Cards upto 395mm Long |
|
|
Graphics Cards Support Holder |
|
Huge Internal Space Holds Dual Power Supply Units which upto 200mm Long |
|
 |
140mm Huge High Air-Flow Sient Fan |
|
120mm Silent Fan for Memery, and North Bridge Chip Sets, High Adjustable! |
|
|
120mm Huge Silent exhaust Fan |
|
Build-in Three Speed Fan Controller |
|
|
Intake Fan With Washable Air Filter |
|
PCI Brackets with Vent Holes, Vents for Optional Graphics Card Cooler |
|
|
Optional Graphics Card Cooler, 120mm (BS-03)or 140mm (BS-06) |
|
Silde-out Power Supply Tray |
|
|

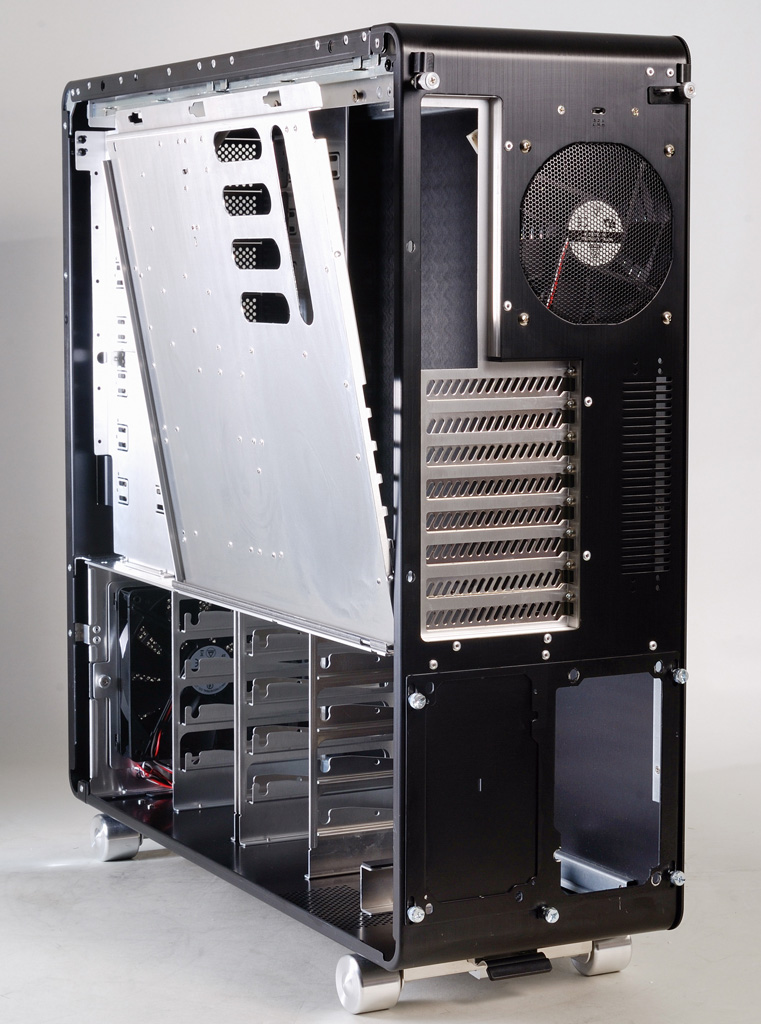

Removable Motherboard Tray |
|
Tool-less Side Panel Latch with Lock |
|
|
Anti-Vibration Kit on Chassis |
|
Anti-Vibration HDD Racks |
|
|
High Quality Aluminum Wheel Set |
|
Security Lock |
|
|
Lian Li Patented Power Supply Holder |
|
Multi-meida I/O Ports on Top of The Case |
|
|
5.25" Bezel with Vent and Filter |
|
Support Liquid Cooling System, Dust - Free Covers included. |
| |
|
|
|
|
|
|
|
|
|
