Noctua CPU Cooler NH-L9i Low Profile LGA1150/1155
[NH-L9i]

№: ++1413   Manufacturer: Noctua

Specifications:

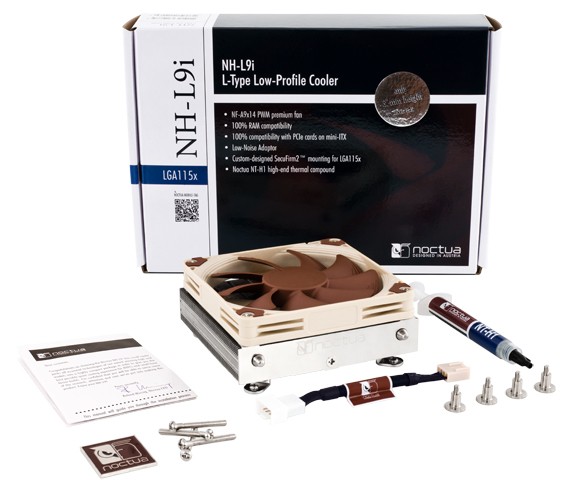

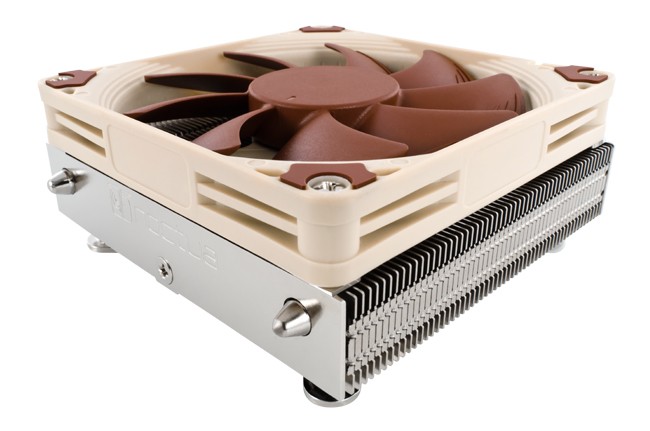

The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2™ mounting system for LGA115x makes installation a child’s play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems.

Caution: The NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 65W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9i is recommended for your CPU.

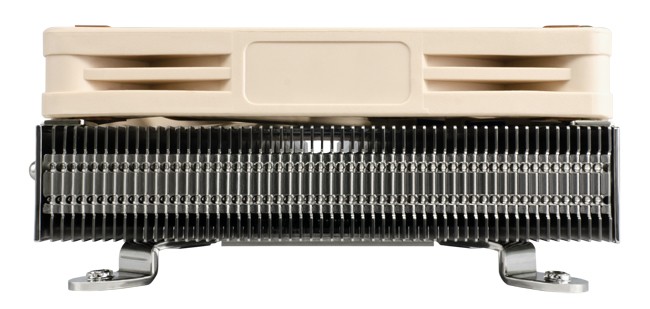

37mm low profile Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.       100% RAM compatibility The NH-L9i has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, so it’s fully compatible with tall memory modules.       100% compatibility with PCIe cards on mini-ITX Most Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.       NF-A9x14 PWM premium fan The highly optimised NF-A9x14 premium fan features Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.       Low-Noise Adaptor Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included Low-Noise Adaptor (L.N.A.) makes it possible to achieve near-silent setups using CPUs with less than 65W TDP.       Custom-designed SecuFirm2™ mounting for LGA115x The NH-L9i bundles a custom-designed, backplate-less SecuFirm2™ mounting system for LGA115x that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2™ quality.       NT-H1 thermal compound Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.       6 years manufacturer’s warranty Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTBF rating of more than 150.000 hours and the entire NH-L9i package comes with a full 6 years manufacturer’s warranty.        Socket compatibility      LGA1150, LGA1155, LGA1156             Height (without fan)      23 mm            Width (without fan)      95 mm            Depth (without fan)      95 mm            Height (with fan)      37 mm            Width (with fan)      95 mm            Depth (with fan)      95 mm            Weight (without fan)      345 g            Weight (with fan)      420 g            Material      Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating             Fan compatibility      92x92x14mm, 92x92x25mm             Scope of Delivery      NF-A9x14 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ Mounting Kit Screws for 92x92x25mm fans Noctua Metal Case-Badge             Warranty      6 Years             Fan specifications                    Model      Noctua NF-A9x14 PWM             Bearing      SSO2             Max. Rotational Speed (+/- 10%)      2500 RPM            Max. Rotational Speed with L.N.A. (+/- 10%)      1800 RPM            Min. Rotational Speed (PWM)      300 RPM            Max. Airflow      57,5 m³/h            Max. Airflow with L.N.A.      40,8 m³/h            Max. Acoustical Noise      23,6 dB(A)            Max. Acoustical Noise with L.N.A.      14,8 dB(A)            Input Power      2,52 W            Voltage Range      12 V            MTBF      > 150.000 h
