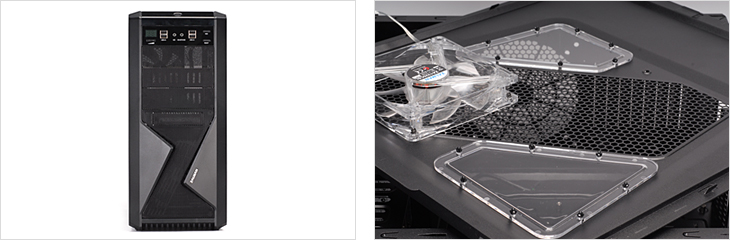

 Front Mesh Cover for High Cooling PerformanceThe front mesh bay cover provides cool air into the system while dust filters prevent dust from entering. |
| Supports up to 7 System FansUp to 7 system fans are installed to expel hot air effectively from the case. |
|
| |
 |

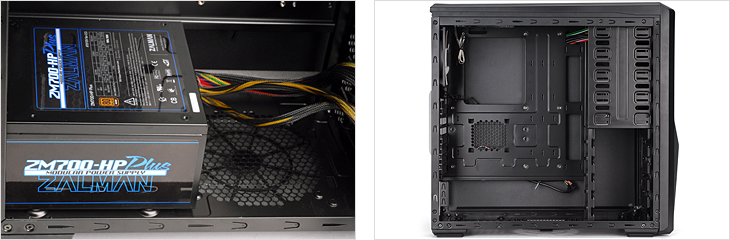

| Supports Bottom PSU Installation and Aperture for Cable ManagementZ9 Plus supports bottom PSU installation and provides an aperture for cable management to make better use of interior space. |

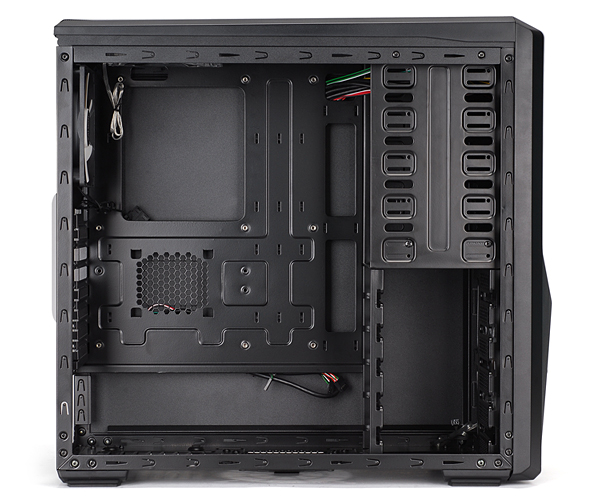

| Black Interior CoatingThe interior of chassis is coated black to provide a sense of unity and elegant design. |
|
|
 |
| Tool Free HDD Installation with Anti-Vibration RubberThe server-type Tool-Free HDD Mount Trays allow easy HDD installation/removal and maintenance. |

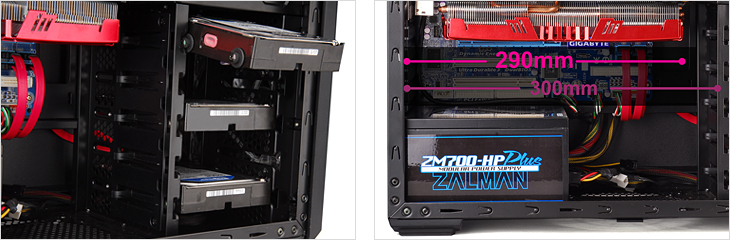

| Spacious Interior for Installing 290mm CardThe interior has been designed to be spacious for easy installation and maintenance of various components. |
|
| |
 |

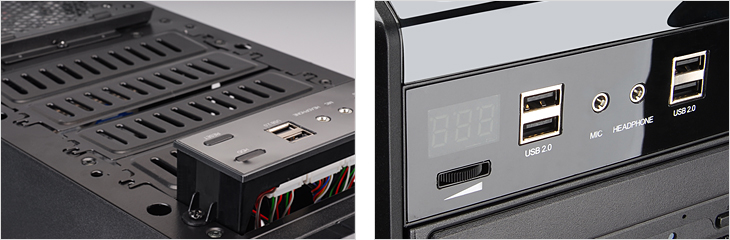

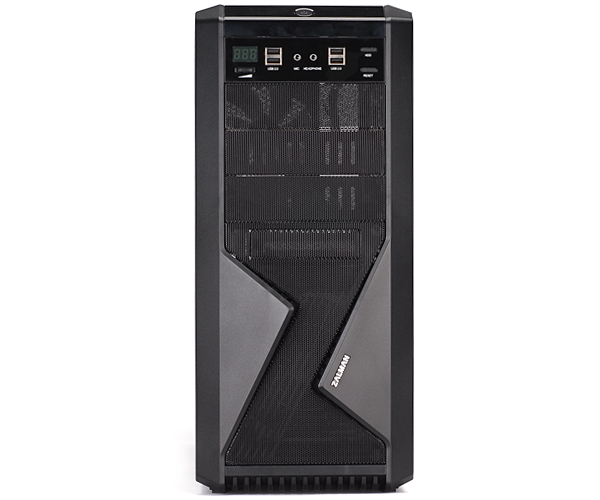

| Front I/O module for Easy Component ChangeFront I/O module enables the location of DVD-ROM and other components to be changed easily according to user preference. |
| 2-Channel Fan Controller and Temperature Display2-Channel
Fan controller for adjusting the system temperature and external LED
temperature display are provided. By controlling noise and interior
temperature with the fan speed, system can be operated at the most
optimal condition. |
|
| |
 |

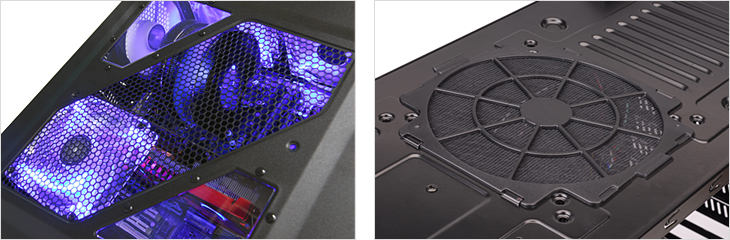

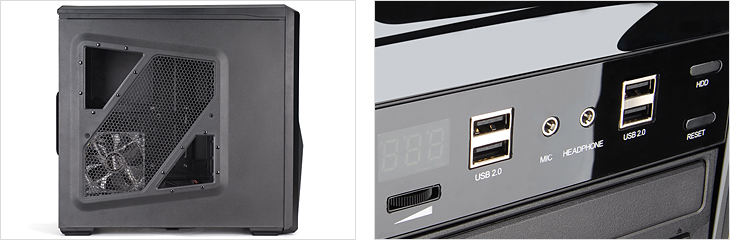

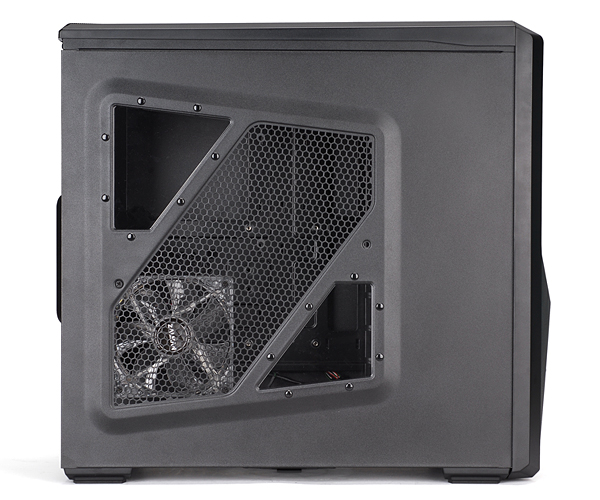

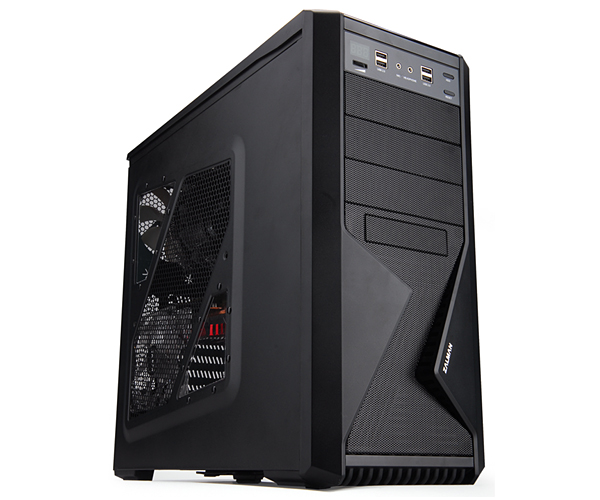

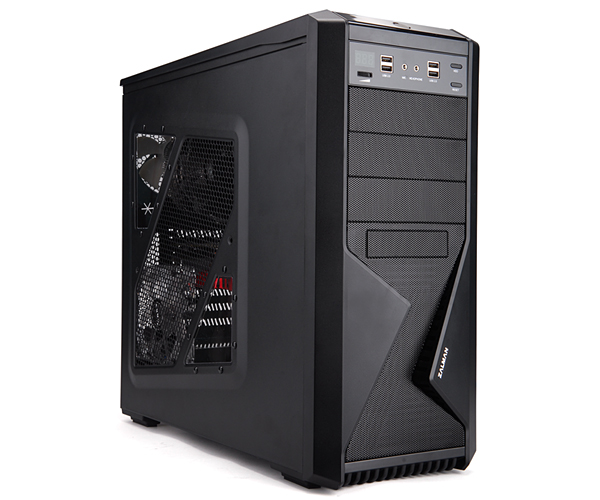

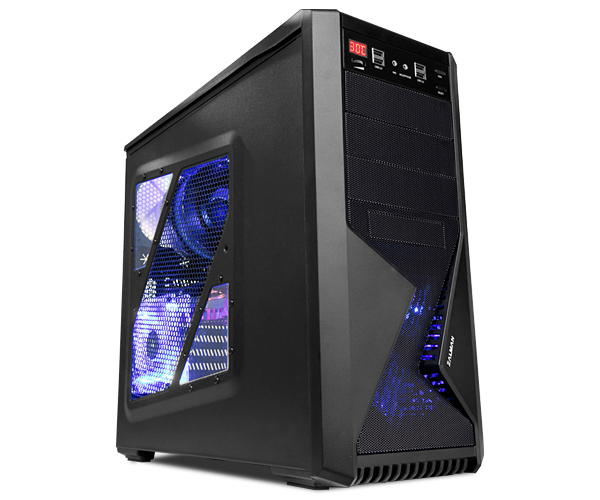

| Side Acryl TuningSide Acryl Tuning is provided for users to view the interior of gaming system. |
| Supports 4 USB 2.0Front I/O module provides 4 USB 2.0 ports for user convenience and expandability. |
|
| |
 |
Supports Front, Top, Side 120mm Blue LED fan and Rear 120mm FanFour 120mm fans deliver maximum cooling, and 3 Blue LED fan emphasizes cool aesthetics.
※ For Z9, 1 front 120mm Blue LED and 1 rear 120mm White Impeller fan are provided. |
| Front and Bottom Dust FiltersDust
filters in the front and bottom mesh covers prevent dust from entering
the system and keep the internal components dust-free. |
|
|
 |

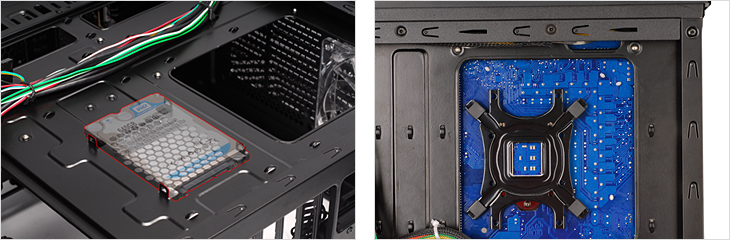

Supports Solid State Drive (SSD)Space is provided on the back of M/B plate for installing 2.5" HDD/SSD.
|
| Separate Apertures for Convenient CPU Cooler InstallationSeparate
apertures for CPU cooler are provided for convenient CPU cooler
installation without having to remove motherboard from case. |
|
| |
 |

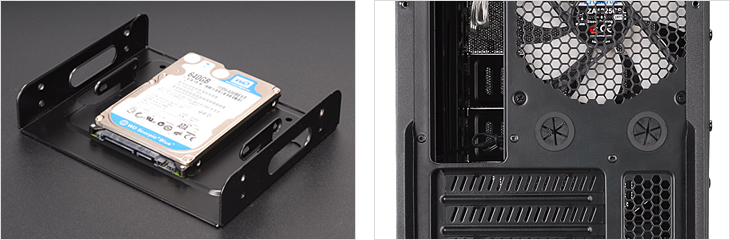

| 3IN1 Adapter Tray Provided3IN1 Adapter Tray is provided for installing FDD / 3.5" HDD / 2.5" HDD/SSD. |

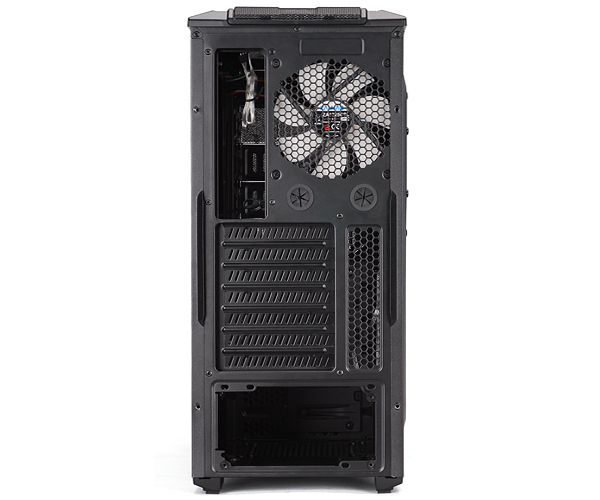

| Tube Apertures for Liquid Cooling SystemsTube apertures are provided at the rear of the case for convenient water cooling set-up and maintenance. |
|
|
 |

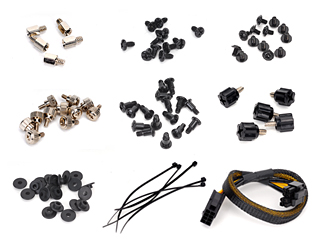

 | - Main Unit
- Stand-off
- A Bolts (BH 6-32*6) [PSU/PCI Slot Installation]
- B Bolts (PWH M3*5) [M/B, FDD, SSD Installation]
- C Bolts (M3*6) [5.25" Bay ODD Installation]
- D Bolts (#6-32*4) [3.5" Bay HDD Installation]
- E-Bolts (#6-32*6) [3.5" HDD Installation]
- HDD Anti Vibration Damper [3.5" Bay HDD Installation]
- Cable Ties
- CPU 12V Extension Cable
- User`s Manual |
|
|
|
| |
 |
|
| Enclosure Type | ATX Mid Tower | | Dimensions | 207(W) x 464(H) x 504(D)mm | | Weight | 7.2kg | | Material | Plastic, Steel | | Motherboard Compatibility | Standard ATX / m-ATX | | Power Supply Compatibility | Standard ATX / ATX12V | | VGA Compatibility | Full Size (290mm) | | Expansion Slot | 7 | | Drive Bay | External 5.25" | 3 | | Internal 3.5" | 5 | | External 3.5" | 1 | | Internal 2.5" | 1 | Cooling
Component | Front | 120㎜ /140㎜ fan x 1 (120㎜ Blue LED fan x 1 standard) | | Top | 120㎜ /140㎜ fan x 2 (120㎜ Blue LED fan x 1 standard) | | Bottom | 120㎜ /140㎜ fan x 1 (option) | | Rear (L) | 120㎜ fan x 1 (standard) | | Side | 120㎜ fan x 2 (120㎜ Blue LED fan x 1 standard) | | Front I/O Ports | Mic x 1, Headphones x 1, USB 2.0 x 4, Fan Controller, Temperature Display | | Color | Black |
|
|
