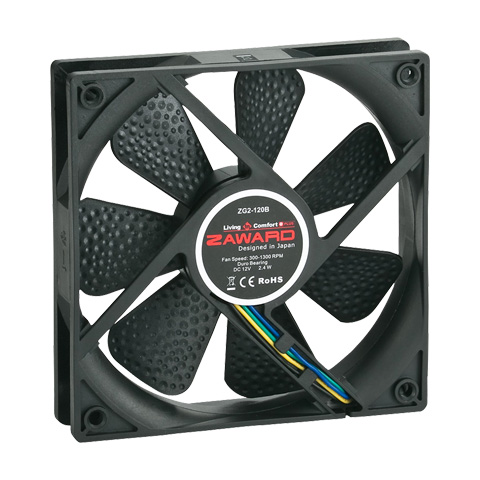

Zaward Golf II Fan 120mm PWM ZG2-120B - black
[ZG2-120B]
№: ++1011   Manufacturer: Zaward

Golf II Fan 120mm PWM ZG2-120B - black
€10 46

available: no
This product is not available
10.46 EUR
share in facebook      share in facebook


Specifications:

Features

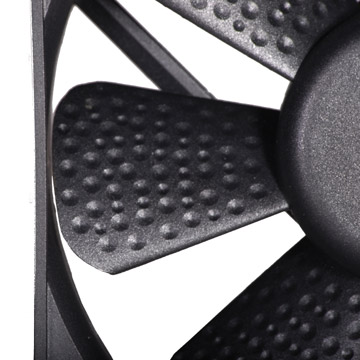

  • Unique patent Golf dimple blade reduces 15% noise level at the same RPM & airflow.
  • Low Noise level from 10~20.8dBA depends on fan speed.
  • Long life expectancy of 60,000 hours in 40 degree C.
  • It increases fan's efficiency and reduces current consumption.
  • PWM function supported, starting at low speed minimizing with very low noise level without reducing efficiency.
    •


    Specification
    Fan
    Dimension   120 x 120 x 25mm

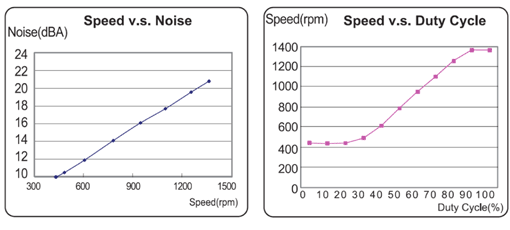

    Fan Speed   300±250rpm ~ 1300±200 rpm

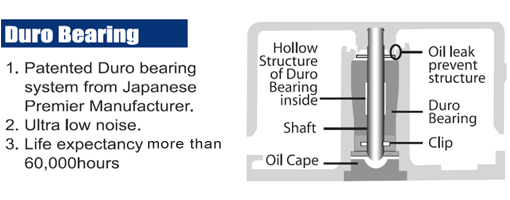

    Bearing Type   Duro bearing
    Max.Air Flow   56.05 CFM
    Operation Voltage   12V
    Life   60,000 Hrs
    Noise Level   10 ~ 20.8 dBA
    Weight   156g
    Colour   Black
    Led   N/A

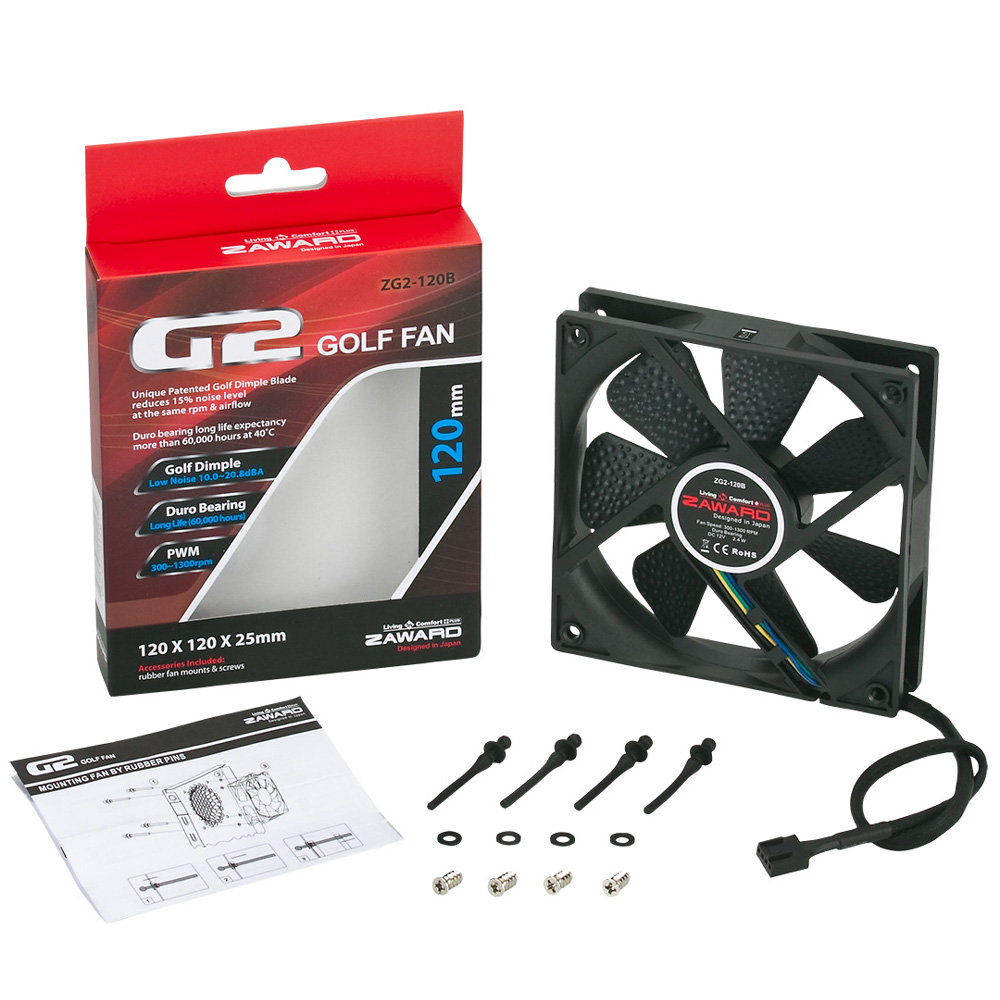

    Accessories
  • M5 x 10 screws
  • Rubber fan mounts
    •



    Machanical Drawing






    PDF Download


    Golf Fan GII
    Patent No:M259470
  • Enlarger View
  • PDF Download
    •
