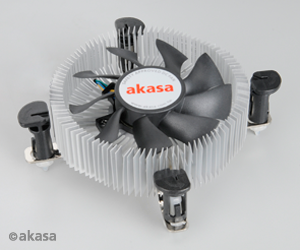

Akasa CPU Cooler Low Profile LGA775/1156 AK-CCE-7106HP
[AK-CCE-7106HP]
№: ++1049
Manufacturer: Akasa
Specifications:
Features

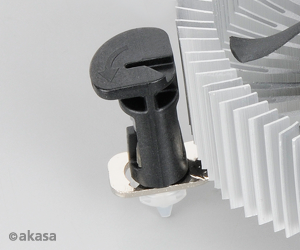

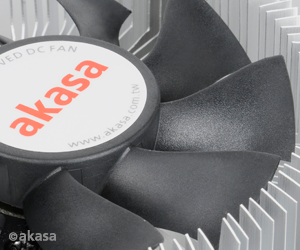

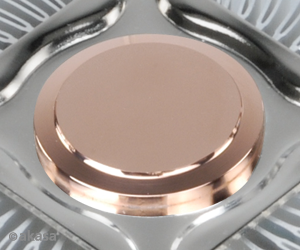

Ultra compact and low noise cooler for Intel Core 2 Duo, Core i3 and Core i5 (73W) CPU’s. The low profile design with embedded S-Flow fan makes it a perfect solution for mini-ITX, HTPC and SFF systems. Aluminium heatsink with full height copper core and quiet HDB bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels. Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. AK-CCE-7106HP is designed to work with CPU’s up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation. • Hi-engineered aluminium heatsink with large full height copper core |
|
Specification
Socket type | Intel LGA775 , LGA1156 |
Cooler dimension | 87.2 x 85.2 x 29.5 mm |
Heatsink material | Aluminum with copper insert |
Weight | 205 g |
Installation | Push pins |
Fan dimension | ∅74 x 15 mm |
Fan speed | 600 - 3000 RPM (PWM controlled) |
Max airflow | 33.50 CFM (56.7 m3/h) |
Max air pressure | 3.76 mmH2O |
Noise level | 18.9 - 31.9 dB(A) |
Current rating | 0.19 A |
Voltage rating | 12V DC |
Bearing type | HDB |
Fan life expectancy | 50,000 hours |
Fan connector | 4pin PWM |
Product code | AK-CCE-7106HP |
