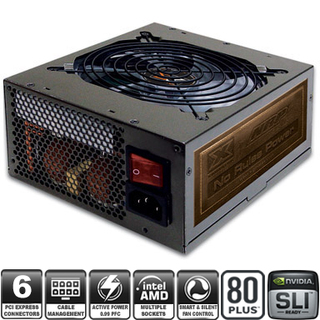

Product Name |
NRP-HC1201 |
|
Product Number |
CPU-1200U-C01 |
|
Power |
1200W |
|
Dimension |
200mm(L) x 150mm(W) x 86mm(H) |
|
Switches |
ATX Logic on-off additional power rocker switch |
|
Power Factor |
Active PFC (PF > 0.9) |
|
Cooling System |
14cm LED fan, Max. 2300RPM±10% |
|
Noise Level |
16dBA±10% at 1300RPM |
|
P.G. Signal |
100-500 ms |
|
Efficiency |
Up to 87% |
|
Hold-up Time |
16 ms |
|
INPUT |
|
Input Voltage |
100-240VAC |
|
Input Frequency Range |
47~63Hz |
|
MTBF |
120,000 hrs minimum (at 25℃) |
|
Input Current |
15A |
|
OUTPUT |
| |
Max/Min |
Regulation *1 |
Ripple & Noise *2 |
Output |
|
+12V1 |
20A/1A |
+3, -3% |
120mV |
600W |
|
+12V4 |
36A/1A |
+3, -3% |
120mV |
|
+3.3V |
30A/0.5A |
+3, -3% |
50mV |
600W |
|
+12V2 |
20A/1A |
+3, -3% |
120mV |
|
+12V3 |
36A/1A |
+3, -3% |
120mV |
|
+5V |
30A/0.5A |
+3, -3% |
50mV |
|
-12V |
0.8A/0A |
+10, -10% |
120mV |
9.6W |
|
+5Vsb |
3.5A/0A |
+3, -5% |
50mV |
17.5W |
|
Total Power |
1200W |
|
Peak Power |
1300W |
|
 +5Vsb operate at 3.5A max load base on PS-ON mode.
 If PS-OFF +5Vsb only operate at 3A max load.
Add 0.1µF capacitors across output terminal during ripple & noise test.
|
|
Environment |
|
Operating Temp. |
10℃ to 50℃ |
|
Storage Temp. |
-20℃ to 70℃ |
|
Operating Humidity |
20% to 90%, non-condensing |
|
Storage Humidity |
5% to 95%, non-condensing |
|
Protection |
| |
DC Rail |
Trigger Point/Range |
|
Over Voltage Protection |
+3.3V trip point |
4.5 Vmax |
| +5.0V trip point |
7.0 Vmax |
| +12.0V trip point |
15.6 Vmax |
|
Over Current Protection |
+3.3V |
33A ~ 50A |
| +5.0V |
33A ~ 50A |
| +12V1 & +12V2 |
22A ~ 35A |
| +12V3 & +12V4 |
39A ~ 55A |
|
Under Voltage Protection |
+3.3V trip point |
2.0 Vmin |
| +5.0V trip point |
3.3 Vmin |
| +12.0V trip point |
8.5 Vmin |
|
Short Protection |
All output to GND | | |
